In today’s fast-paced industries, from automotive manufacturing to high-tech electronics assembly,
the need for reliable, high-performance materials has never been greater. Introducing our ESD IXPE Foam
—an Irradiated Cross-linked Polyethylene foam engineered to deliver exceptional static control, durability,
and adaptability across a wide range of applications.
What Makes ESD IXPE Foam Stand Out?
At its core, our ESD IXPE foam is made from low-density polyethylene (LDPE)
and processed through advanced irradiation cross-linking technology.
This unique manufacturing method creates a closed-cell structure that offers outstanding physical properties,
including uniform cell size, high strength, and excellent resistance to chemicals, moisture, and temperature extremes.
Tailored Performance for Static-Sensitive Environments
With a surface resistance ranging from 10⁶ to 10⁹ Ω/sq, this foam is specifically
designed for electrostatic discharge (ESD) protection. It safely dissipates static charges,
making it an ideal choice for packaging, handling, and storing sensitive electronic components, PCBs,
and other static-vulnerable devices.
Wide Density & Thickness Range for Any Need
Whether you require lightweight cushioning or robust structural support,
our ESD IXPE foam delivers. Available in densities from 25 to 300 kg/m³,
and thicknesses from a thin 0.2 mm single layer up to 200 mm in multilayer form,
the foam can be precisely matched to your mechanical and protective requirements.
Flexible Formats & Customization
We offer rolls from 1m to 200m in length, and sheets from 30mm to 2000mm,
with standard widths between 500mm and 1800mm. Color options include black, grey,
or custom shades. Plus, the foam can be processed by carving, punching, thermoforming,
or adhesive backing lamination to fit your exact design.
Performance You Can Rely On
Shore Hardness: 13–75 Shore C, offering a range from soft cushioning to semi-rigid support.
Temperature Resistance: Works reliably from -40°C to 80°C, with special formulations available up to 120°C.
Flame Retardant: Customizable to meet your fire safety standards.
Certifications: Fully compliant with RoHS and REACH, ensuring environmental and health safety.
Beyond ESD: Multi-Functional Benefits
While ESD protection is a key feature, our IXPE foam also provides excellent thermal insulation,
waterproofing, and sound insulation —making it a versatile solution for HVAC systems,
air conditioners, automotive interiors, building and construction, sports equipment, leisure products, and more.
Partner with a Trusted Material Solution

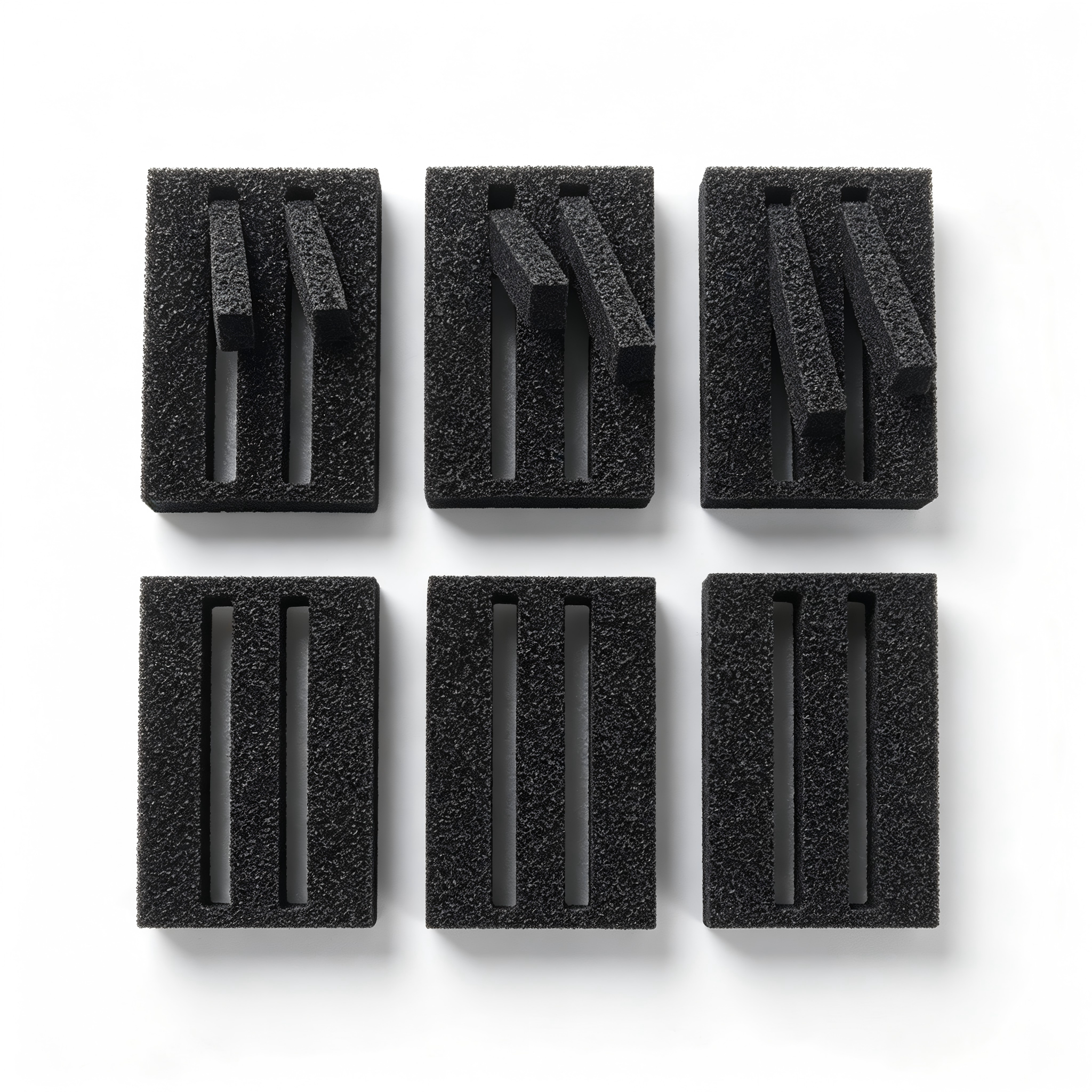

Whether you need die-cut gaskets, anti-static liners, acoustic padding, or thermal barriers,
our ESD IXPE foam adapts to your challenge. Backed by international certifications
and a wide range of processing capabilities, we make it easy to integrate high-performance foam into your next project.
