EBP-11 ESD Earth Bonding Plug UK 3 Pin - 3x 10mm Press Studs with 1Megaohm Resistors - Yellow ABS Grounding Point for Wrist Strap & Mat Kit

In the world of Electrostatic Protected Areas (EPAs), the ground is your foundation. But simply finding a mains socket isn't enough

—you need safety, compliance, and versatility.

Meet the EBP-11 UK Plug. At first glance, it looks like a standard yellow plug.

But look closer: this is the most compact grounding hub for your workstation.

Meet the EBP-11 UK Plug. At first glance, it looks like a standard yellow plug.

But look closer: this is the most compact grounding hub for your workstation.

Safety First, Compliant Always

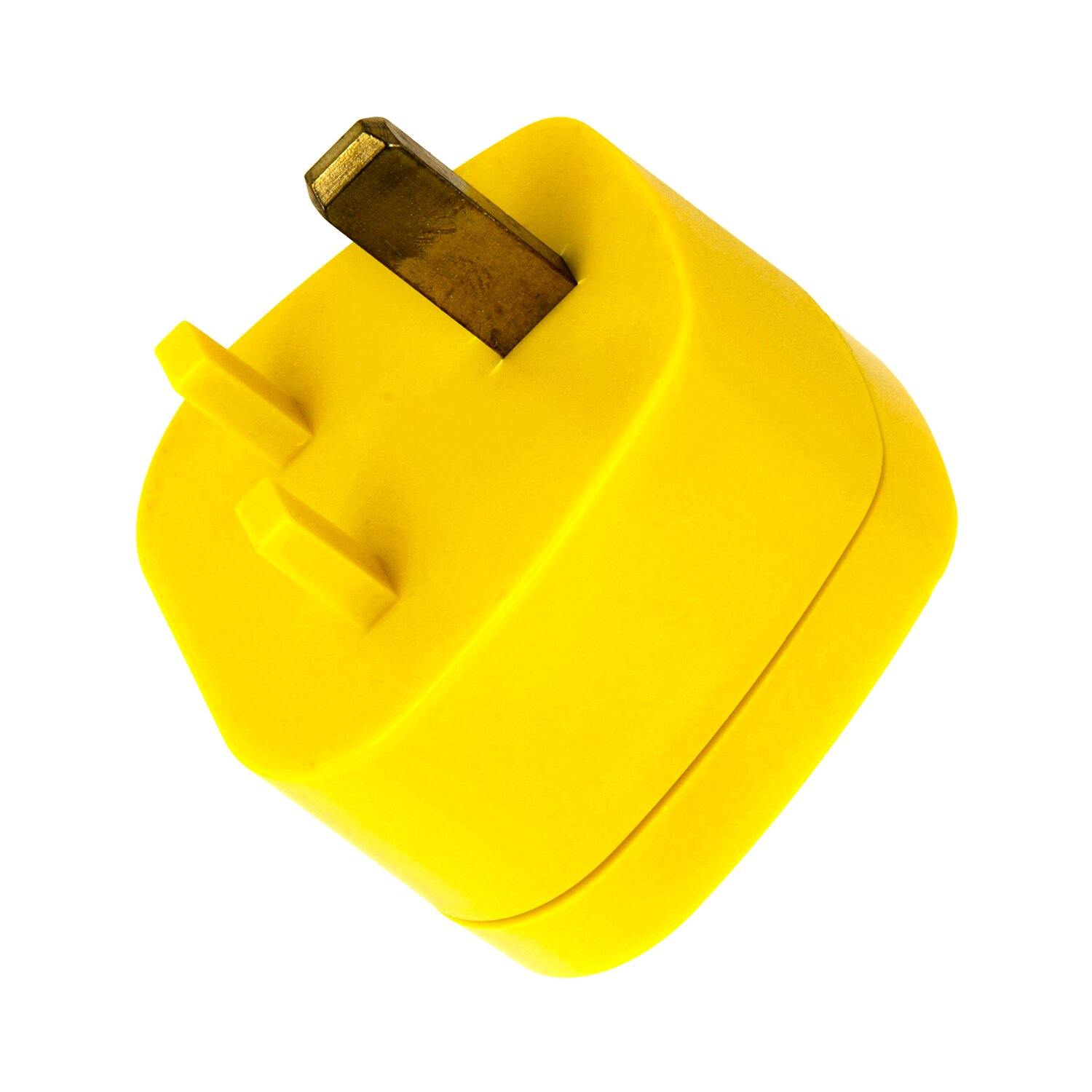

Unlike standard plugs, the EBP-11 inserts into a normal UK power socket connecting only the Earth.

The Live and Neutral pins are molded from insulating plastic—they are completely dormant.

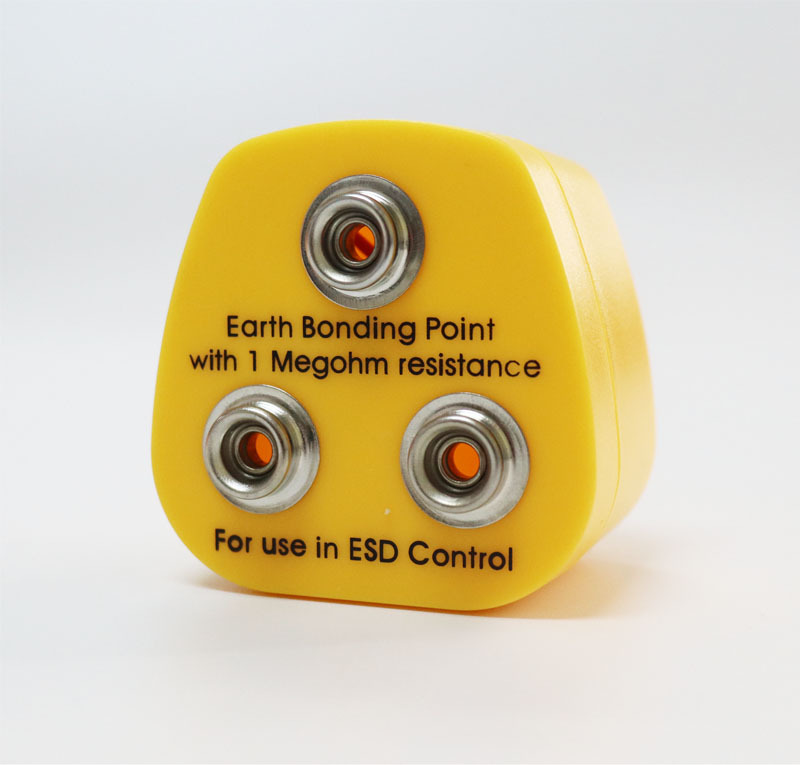

This is critical for safety. The unit features three 10mm studs, each fitted with a dedicated 1Mega-ohm (1MΩ) resistor .

Why the resistor? In the rare event of a fault current (e.g., a short to mains),

this resistor limits the current to less than 0.3mA at 240V, protecting the operator.

If the fault persists, the resistor acts as a fuse and opens the circuit .

The "3 Stud" Advantage

Most bonding plugs offer one or two connections. The EBP-11 offers three.

This allows you to ground your entire EPA ecosystem simultaneously:

Wrist Strap (via 1.8m, 2.4m, or 3.6m coil cord)

Bench Mat

Floor Mat

Technical Specifications

Dimensions: 50 x 50 x 38mm (Ultra-compact, doesn’t block adjacent sockets)

Weight: 34 grams

Material: Yellow ABS (High impact resistance)

Packaging: Supplied in ESD-safe pink anti-static bag
