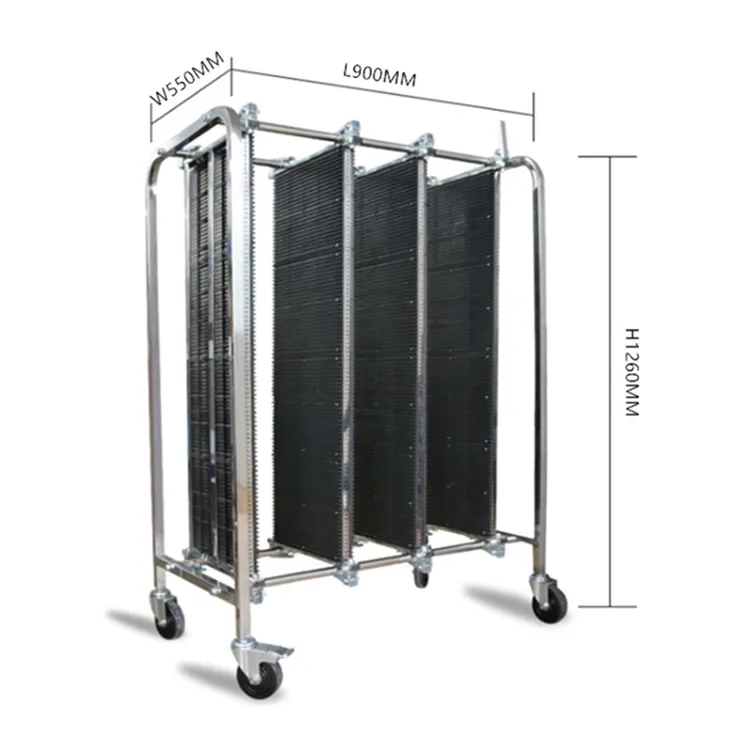

An ESD SMT Trolley is a specialized trolley or cart designed for use in electronics manufacturing
environments.particularly in Surface Mount Technology (SMT) processes.ESD stands for Electrostatic Discharge,
which refers to the sudden flow of electricity between two electrically charged objects caused by contact,
an electrical short, or dielectric breakdown. In the context of electronics manufacturing,
ESD can damage sensitive electronic components, so it's crucial to use ESD-safe equipment.
Key Features of an ESD SMT Trolley:
1.ESD-Safe Materials: The trolley is made from materials that dissipate static electricity,
preventing the buildup of static charges that could damage sensitive electronic components.
2.Conductive Casters: The wheels (casters) are typically made from conductive materials to ensure
that any static charge is safely grounded as the trolley moves.
3.Grounding Points: The trolley often includes grounding points or straps to connect it
to a grounding system, ensuring that any static charge is safely dissipated.
4.Adjustable Shelves: Many ESD SMT trolleys come with adjustable shelves
to accommodate different sizes of SMT trays, PCBs (Printed Circuit Boards), or other components.
5.Durability: Designed to withstand the rigors of an industrial environment,
these trolleys are typically robust and durable.
6.Mobility: They are designed to be easily movable, allowing workers
to transport components and materials efficiently across the production floor.
7.Compliance: ESD SMT trolleys are often compliant with industry standards
such as ANSI/ESD S20.20 or IEC 61340, which specify requirements for ESD control programs.
Applications:
1.SMT Lines: Used to transport SMT trays, PCBs, and other components between different stages of the SMT assembly process.
2.Warehousing: Useful for moving sensitive electronic components within a warehouse or storage area.
3.Quality Control: Used to transport components to and from quality control inspection stations.
Benefits:
1.Protection: Protects sensitive electronic components from ESD damage.
2.Efficiency: Improves workflow efficiency by allowing easy movement of materials.
3.Organization: Helps keep components organized and easily accessible.
Considerations When Choosing an ESD SMT Trolley:
1.Size and Capacity: Ensure the trolley is the right size for your needs and can handle the weight of the materials you plan to transport.
2.Mobility: Consider the type of flooring in your facility and choose casters that are suitable for that surface.
3.Compliance: Verify that the trolley meets relevant ESD standards for your industry.
Overall, an ESD SMT Trolley is an essential tool in any electronics manufacturing environment where ESD protection is critical.
