ESD Stretch Wrap for Electronic Protection

ESD (Electrostatic Dissipative) stretch wrap is a specialized packaging material designed to protect sensitive electronic components from electrostatic discharge (ESD) during storage or transportation. Here’s a breakdown of its key features and uses:

Key Features of ESD Stretch Wrap:

Anti-Static Properties

Made with additives or coatings that dissipate static electricity, preventing buildup that could damage electronic components.

Typically has a surface resistivity of 10⁶ to 10¹¹ ohms/sq (within the ESD-safe range).

Material Composition

Usually made from LLDPE (Linear Low-Density Polyethylene) with conductive or dissipative additives (e.g., carbon or metallic particles).

Some variants use a co-extruded layer for ESD protection.

Transparency & Stretchability

Allows visibility of packaged items while providing secure bundling.

Offers good stretch and cling properties for stability during transit.

Compliance with ESD Standards

Meets industry standards like ANSI/ESD S20.20, IEC 61340, or MIL-STD-1686 for electrostatic protection.

Common Applications:

Packaging PCBs (Printed Circuit Boards), semiconductors, and electronic assemblies.

Wrapping ESD-sensitive devices (e.g., hard drives, microchips, medical electronics).

Securing items on ESD-safe pallets in cleanrooms or manufacturing facilities.

Advantages Over Regular Stretch Wrap:

Prevents static-induced damage (unlike standard plastic wraps, which can generate static).

Reduces dust attraction (common with non-ESD plastics).

Maintains a controlled electrostatic environment.

Considerations When Choosing ESD Stretch Wrap:

Resistivity Level – Ensure it matches your ESD requirements.

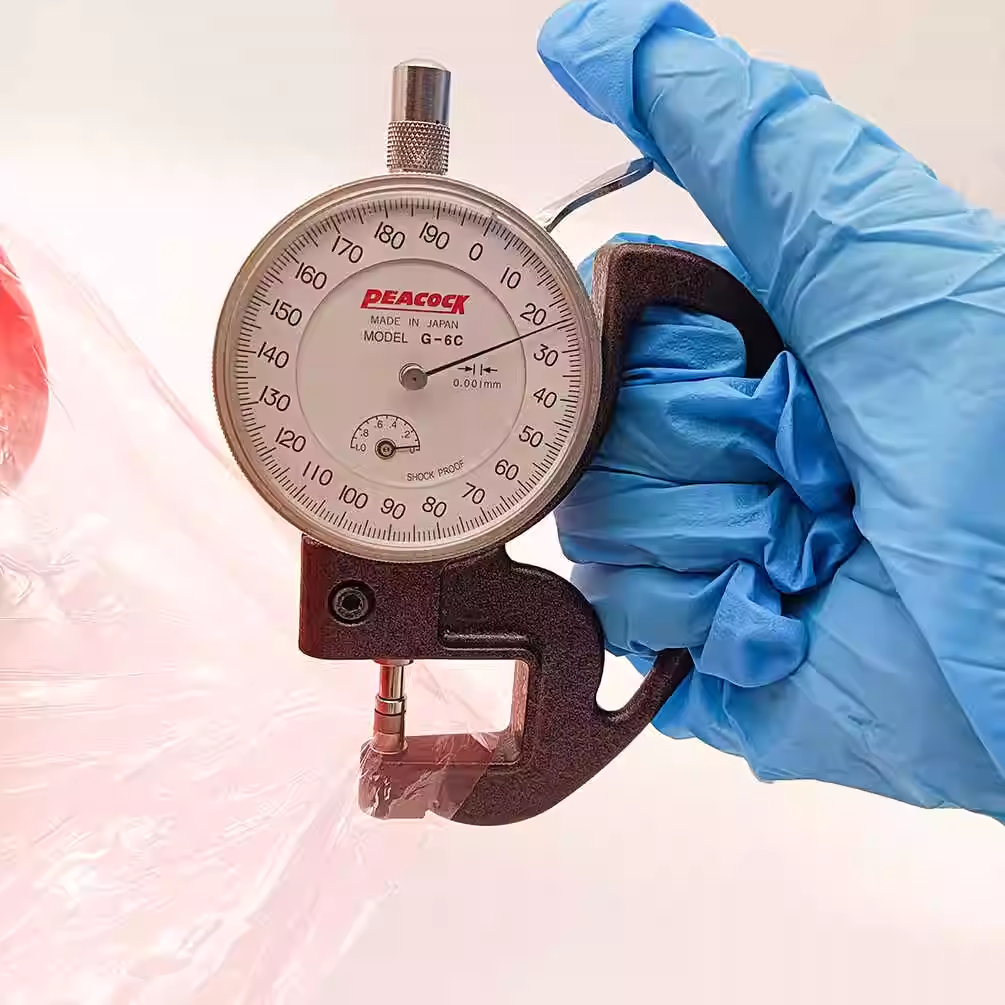

Thickness – Common gauges range from 60 to 100 microns.

Width & Length – Available in various rolls for hand or machine wrapping.

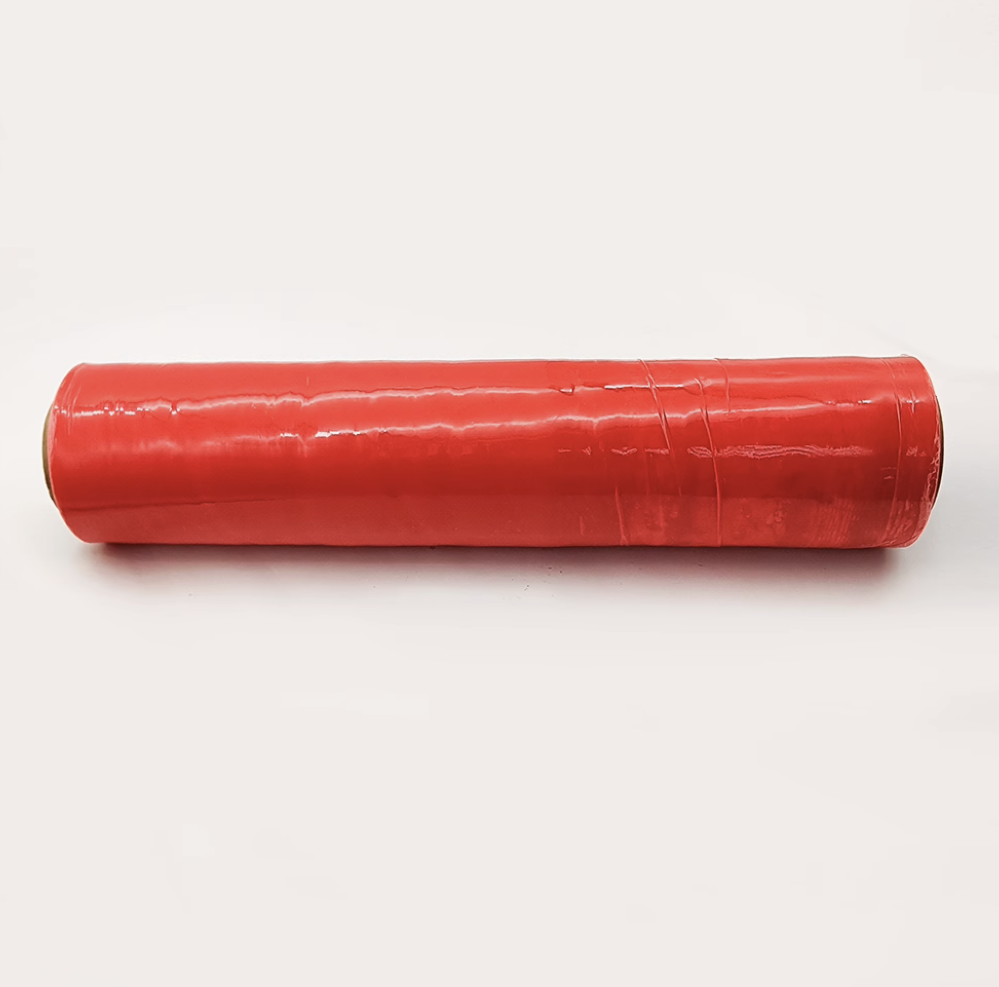

Color Options – Typically clear, but pink or black variants exist (pink is often used for ESD identification).
