L-Type ESD-Safe PCB Storage Rack with 10E4-10E9Ω Surface Resistance for Antistatic Protection




An L-Type ESD-Safe PCB Storage Rack with a surface resistance of 10⁴–10⁹Ω is designed to provide antistatic protection for sensitive electronic components, such as printed circuit boards (PCBs), by safely dissipating electrostatic charges. Here’s a breakdown of its key features and benefits:




Key Features:



ESD-Safe Material:

Made from static-dissipative polypropylene (PP) or other ESD-safe composites to prevent charge buildup.

Surface resistance 10⁴–10⁹Ω ensures controlled charge dissipation (per ANSI/ESD S20.20 and IEC 61340-5-1 standards).

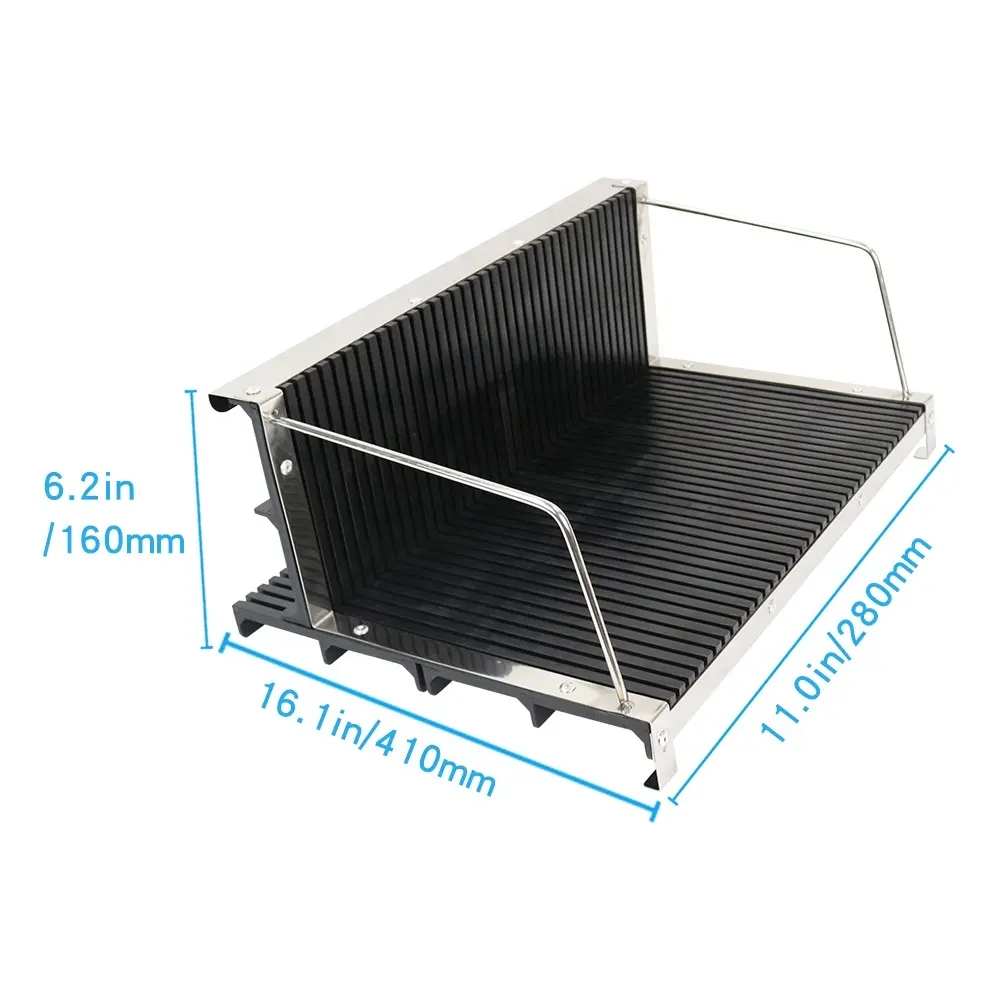

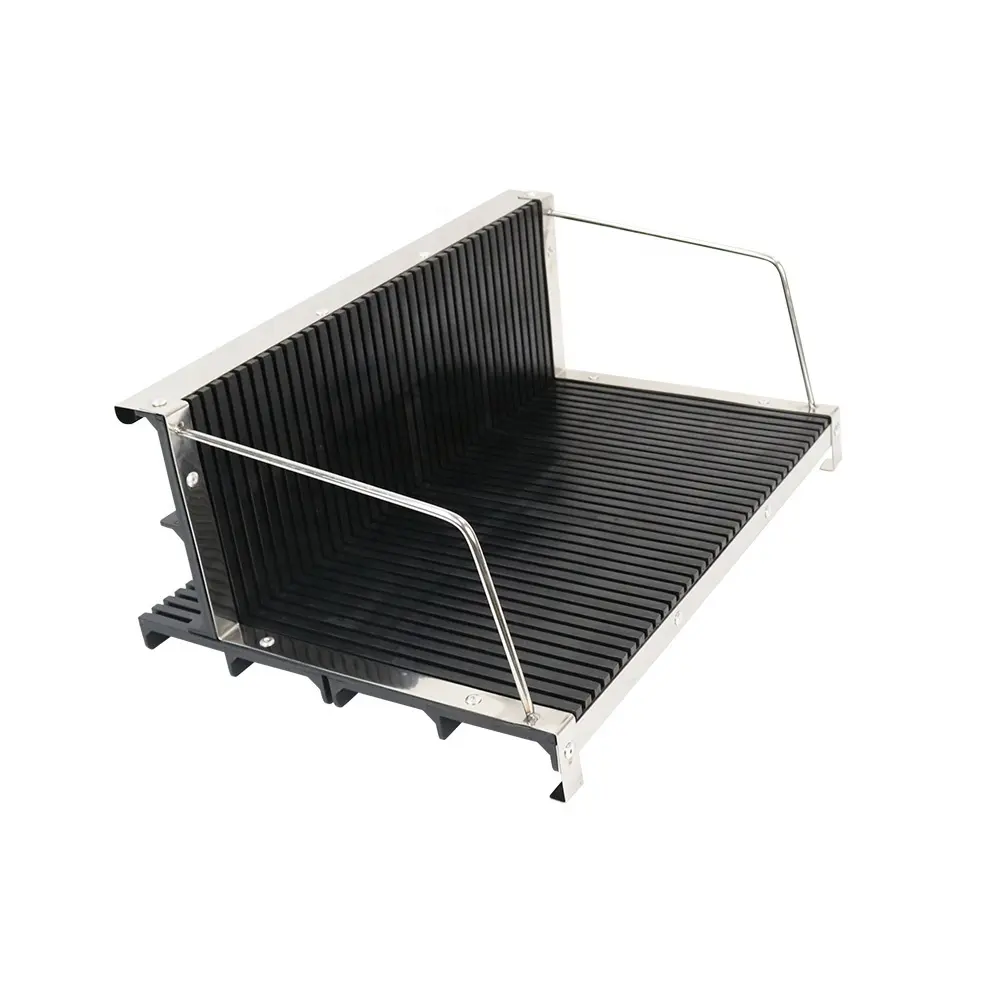

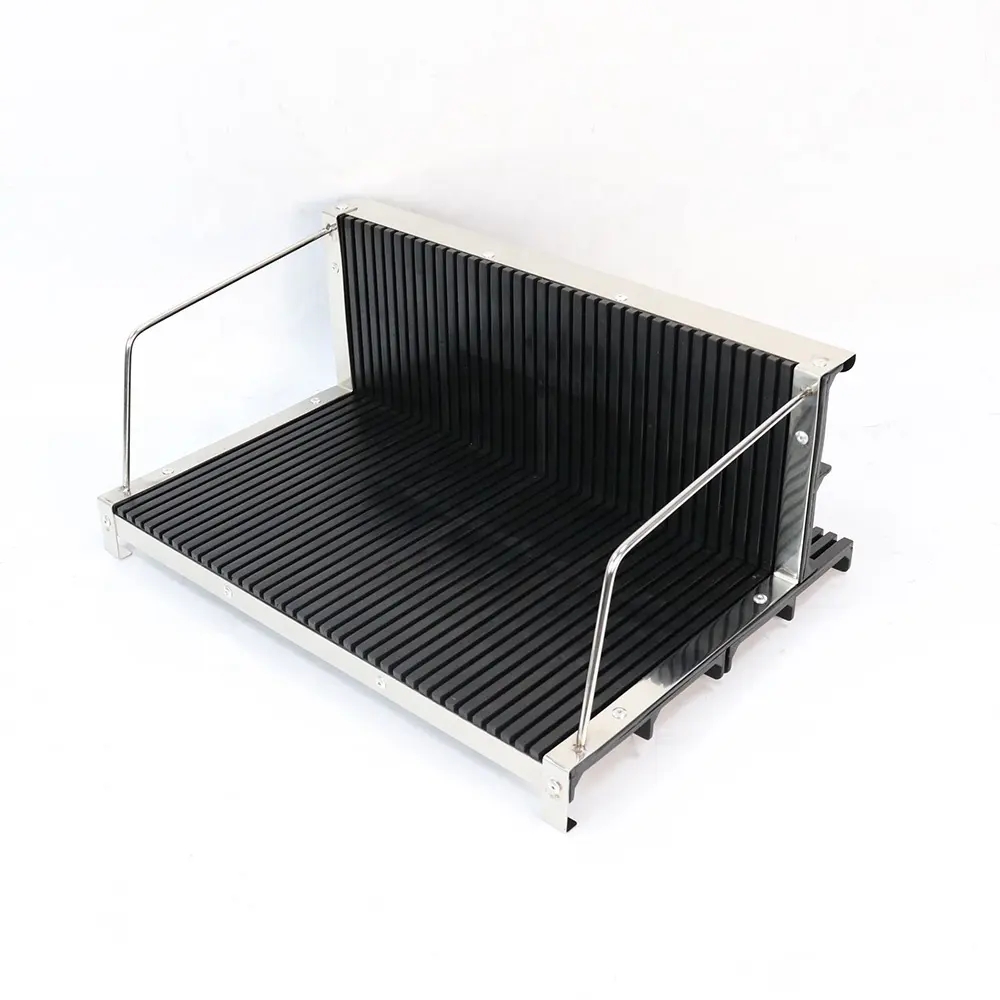

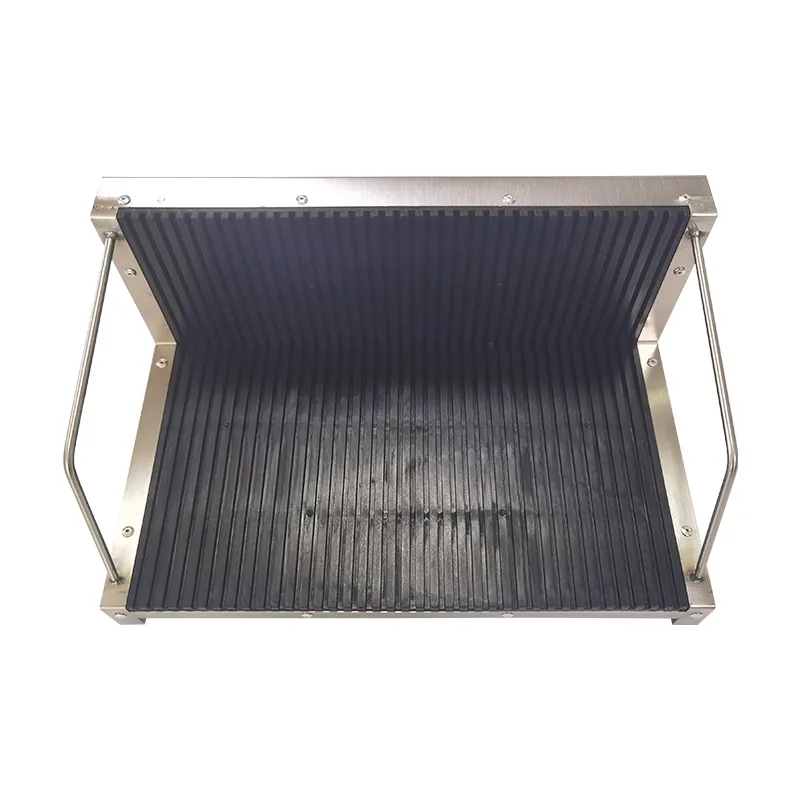

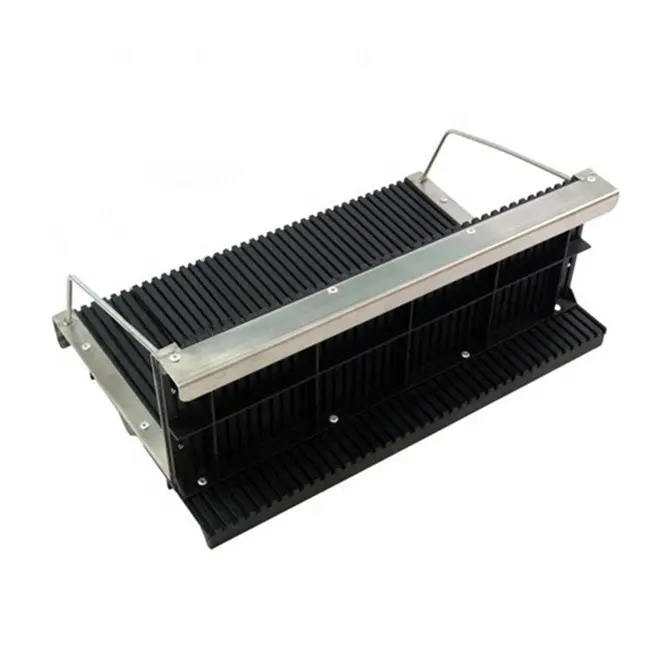

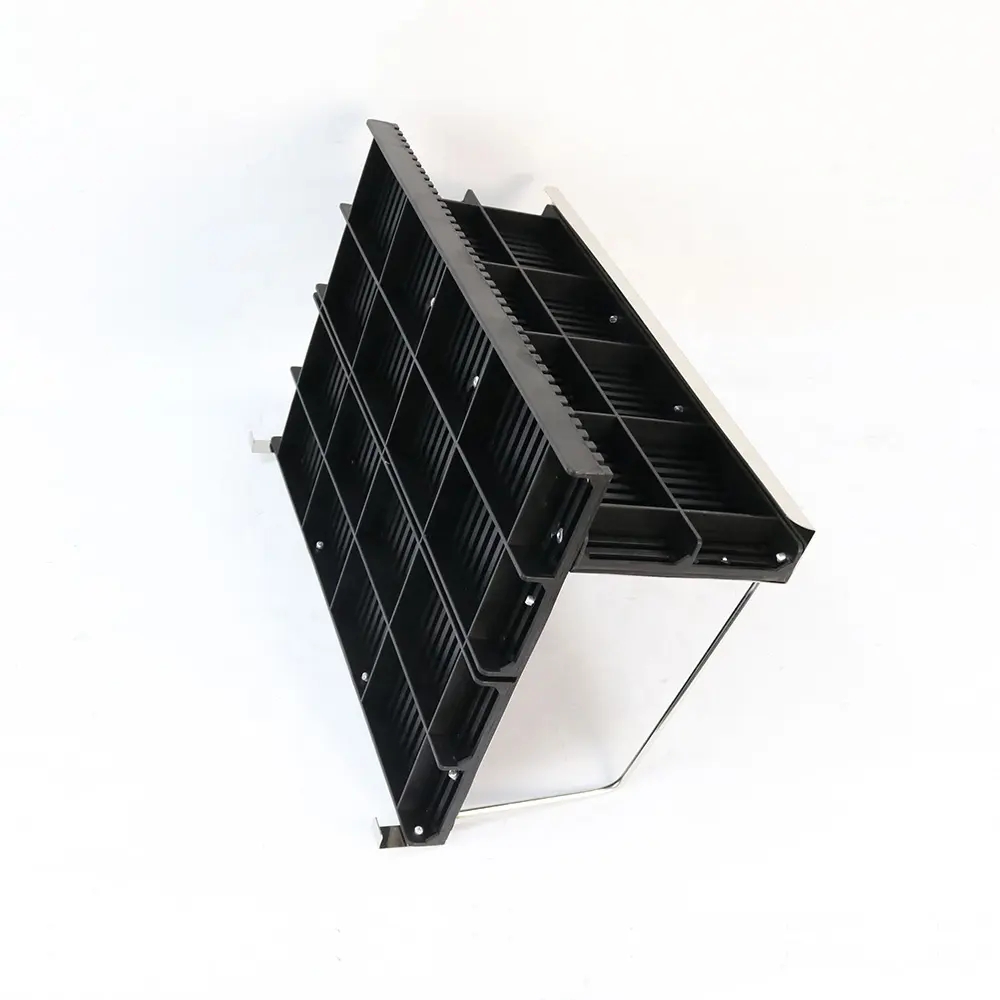

L-Shaped Design:

Provides stable, space-saving storage for PCBs in various orientations.

Often stackable or modular for efficient workspace organization.



Protection Against ESD Damage:

Prevents electrostatic discharge (ESD) that could harm sensitive components.

Ideal for electronics manufacturing, repair labs, and storage areas.



Durable & Lightweight:

Resists chemicals, moisture, and mechanical wear.

Easy to clean and maintain for long-term use.


Compatibility:

Suitable for different PCB sizes (adjustable dividers may be available).

Often used alongside ESD-safe workstations, mats, and grounding systems.


Applications:

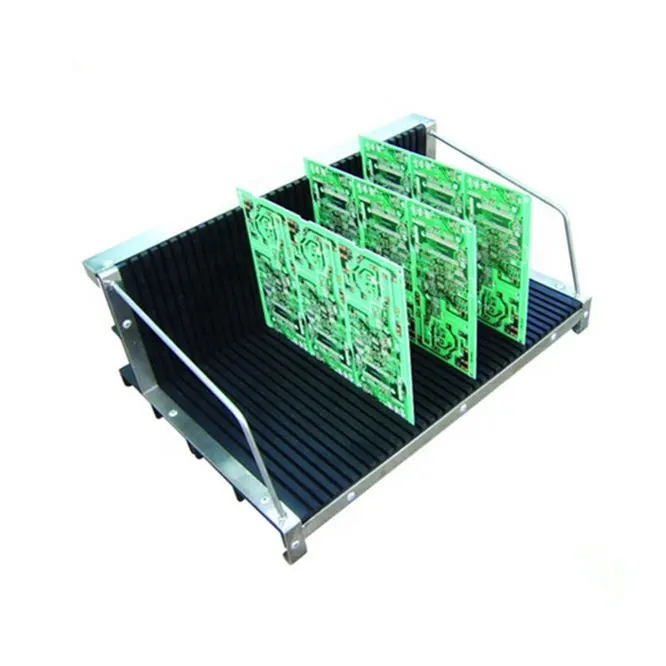

✔ PCB assembly & repair stations

✔ Electronics manufacturing facilities

✔ R&D labs and testing environments

✔ Storage of ESD-sensitive devices (ICs, SSD boards, etc.)


Why Surface Resistance Matters:

10⁴–10⁹Ω range ensures slow, safe charge dissipation (too low could short circuits, too high could allow static buildup).

Compliant with ESD protection standards for workplaces handling sensitive electronics.
