In the realm of surface mount technology (SMT) manufacturing and electronic assembly, efficient and safe component storage is paramount. The use of Electrostatic Discharge (ESD)-protected storage solutions is critical to prevent damage to sensitive components, which can be harmed by even minimal static electricity. Among the most common storage items are SMT reels, which hold components like resistors, capacitors, and integrated circuits on tape-and-reel carriers. To accommodate different production scales and reel sizes, manufacturers utilize various ESD storage trays. This article provides a detailed overview of three popular ESD storage tray models: one for 26×180 mm (7-inch) reels, one for 30×180 mm reels, and another for 33×330 mm (12-inch) reels. We will explore their basic parameters, primary applications, the rationale behind using different sizes, and their respective advantages.

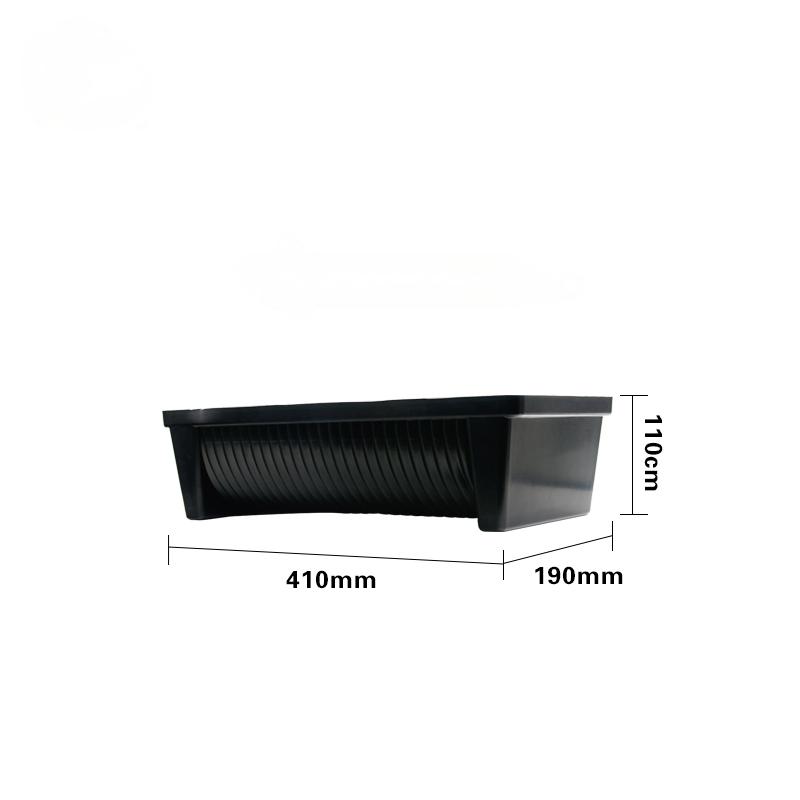

1. ESD Storage Tray for 26 x 180mm (7-inch) SMT Reels (Economy Version)
Basic Parameters:
Model Type: Economy Version
Internal Reel Capacity: 26 reels
Reel Dimensions Compatible: 180 mm (7 inches) in diameter
Tray Dimensions (LxWxH): 410 mm x 190 mm x 110 mm
Special Feature: Stackable design
Primary Application:
This economy version tray is designed for standard 7-inch SMT reels,
which are widely used in medium-scale PCB assembly lines.
It is ideal for storing common components such as small resistors, capacitors, and transistors.
The economy model provides a cost-effective solution for workshops or production environments
where budget constraints are a consideration but ESD protection cannot be compromised.
Its stackable feature allows for vertical storage, saving valuable bench or shelf space in warehouses and production areas.
This tray is commonly used in electronics manufacturing services (EMS), repair stations,
and prototyping labs where a moderate number of reels need to be organized and protected.
Why Use This Size?
The 180mm reel size is an industry standard for many passive and active components.
A tray holding 26 reels offers a balance between capacity and physical handling.
The economy version meets the needs of users who require essential ESD protection
without additional features that might increase cost.
Its dimensions are optimized for ergonomic handling and efficient use of space in storage racks or on workbenches.

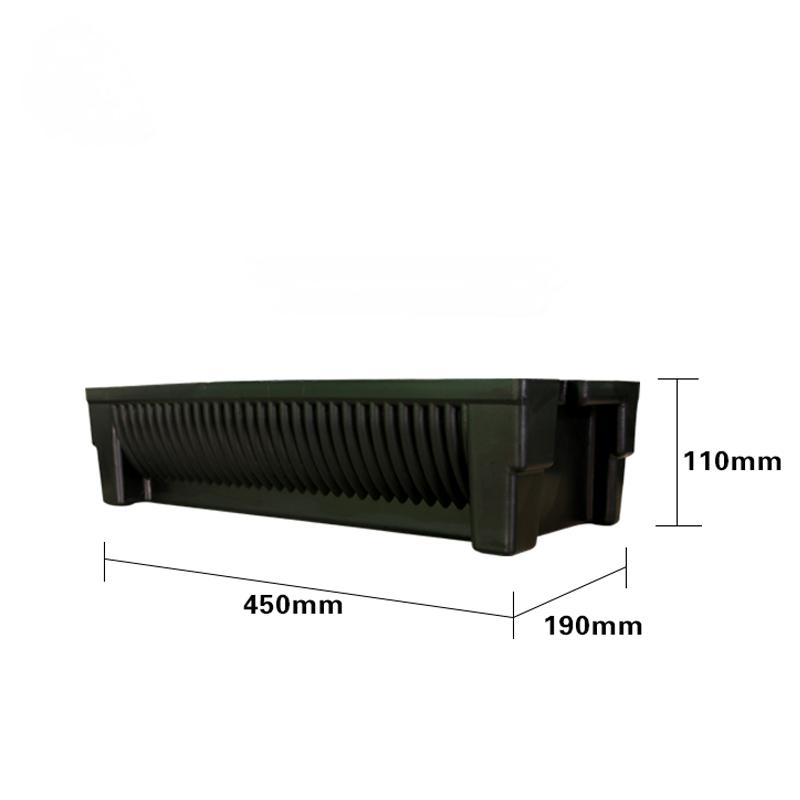

2. ESD Storage Tray for 30 x 180mm (7-inch) SMT Reels
Basic Parameters:
Internal Reel Capacity: 30 reels
Reel Dimensions Compatible: 180 mm (7 inches) in diameter
Tray Dimensions (LxWxH): 450 mm x 190 mm x 110 mm
Special Feature: Stackable design
Primary Application:
This tray is designed for facilities that require a higher storage density for 7-inch reels.
With a capacity for 30 reels, it is suited for larger-scale production environments,
such as high-volume manufacturing lines or distribution centers.
It provides secure ESD-safe storage for a broader range of components,
including ICs and other sensitive devices. The stackable design ensures stability when multiple trays are piled up,
facilitating efficient inventory management and logistics. This tray is often used in industries like consumer electronics,
automotive electronics, and industrial control systems, where numerous reel-based components are handled daily.
Why Use This Size?
The increased capacity (30 reels vs. 26) makes this tray more efficient for operations
that need to store and access a larger quantity of components without increasing the footprint per reel significantly.
The slightly larger dimensions (450mm long) allow for better organization and can reduce the number of
trays required overall, streamlining material handling and reducing clutter.
This size is chosen for its optimal balance between high density and ease of access.

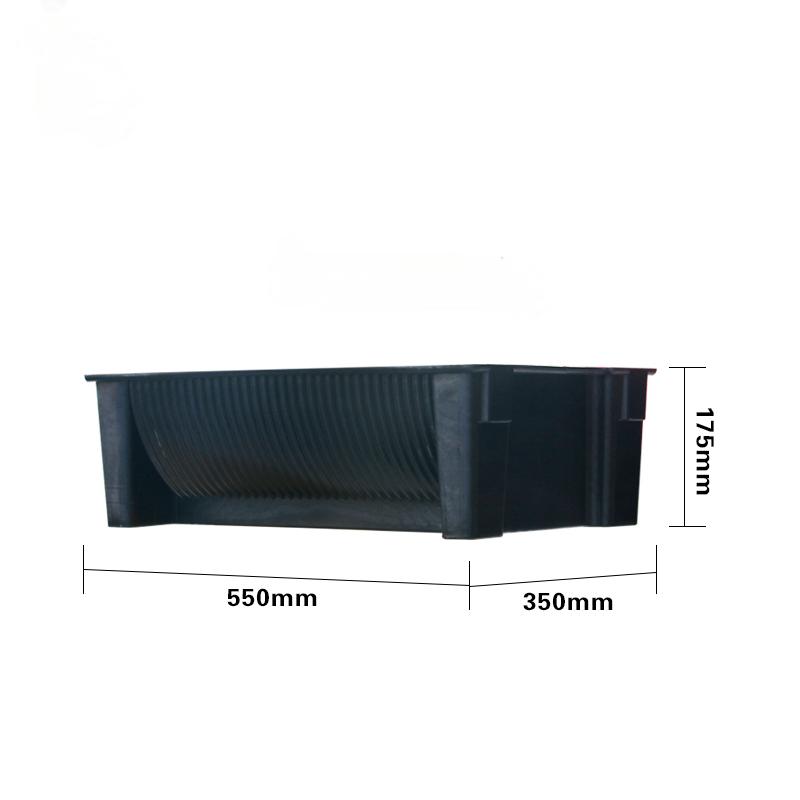

3. ESD Storage Tray for 33 x 330mm (12-inch) SMT Reels
Basic Parameters:
Internal Reel Capacity: 33 reels
Reel Dimensions Compatible: 330 mm (12 inches) in diameter
Tray Dimensions (LxWxH): 550 mm x 350 mm x 180 mm
Special Feature: Stackable design
Primary Application:
This tray is engineered for larger 12-inch reels, which are typically used for high-capacity components
or in very high-volume production settings. These reels often contain larger components,
such as connectors, or a greater quantity of smaller parts, reducing the frequency of reel changes.
The tray is essential in industries like telecommunications, aerospace, and automotive manufacturing,
where production runs are long and efficiency is critical.
Its robust and stackable design ensures safe storage and transport of these heavier reels,
protecting valuable components from both physical and electrostatic damage.
Why Use This Size?
12-inch reels offer significantly more components per reel, minimizing downtime associated with loading new reels.
A dedicated tray for this size is necessary due to the substantial physical difference from 7-inch reels.
The larger tray dimensions (550x350x180mm) provide the required structural support and capacity.
Using this size tray improves workflow efficiency in high-volume environments and is crucial for maintaining the integrity of large,
often more expensive, components.
The Importance of Using Different Sizes of PCB Storage Racks
The use of different-sized ESD storage trays is not arbitrary; it is a strategic decision driven by several factors:
Component Variety: Electronic components come in various sizes and are packaged on different reel diameters.
Using appropriately sized trays ensures a secure fit, preventing reels from moving around and becoming damaged.
Production Scale: The scale of manufacturing operations dictates storage needs. Small labs benefit from smaller,
economy trays, while large factories require high-capacity trays to maintain continuous production.
Space Optimization: Different tray sizes allow for efficient use of available space. Stackable trays, regardless of size,
maximize vertical storage, making warehouses and production floors more organized.
Cost Efficiency: Matching the tray size to the reel size prevents overinvestment.
There's no need to use a large 12-inch tray for small 7-inch reels; doing so would waste space and money.
Workflow Efficiency: Properly sized storage solutions streamline the material handling process.
Technicians can quickly identify and access the required reels, reducing downtime and improving overall productivity.
ESD Protection:
All these trays are made from ESD-safe materials (often conductive or dissipative plastics).
Using the correct size ensures that all stored components are uniformly protected from electrostatic discharge,
which is critical for maintaining product quality and yield.
In conclusion, selecting the right ESD storage tray—whether the economy version for 26x180mm reels,
the standard for 30x180mm reels, or the large model for 33x330mm reels
—is a vital aspect of efficient and safe electronic manufacturing.
By understanding their parameters and applications, businesses can optimize their operations,
protect their components, and ultimately enhance their productivity.
