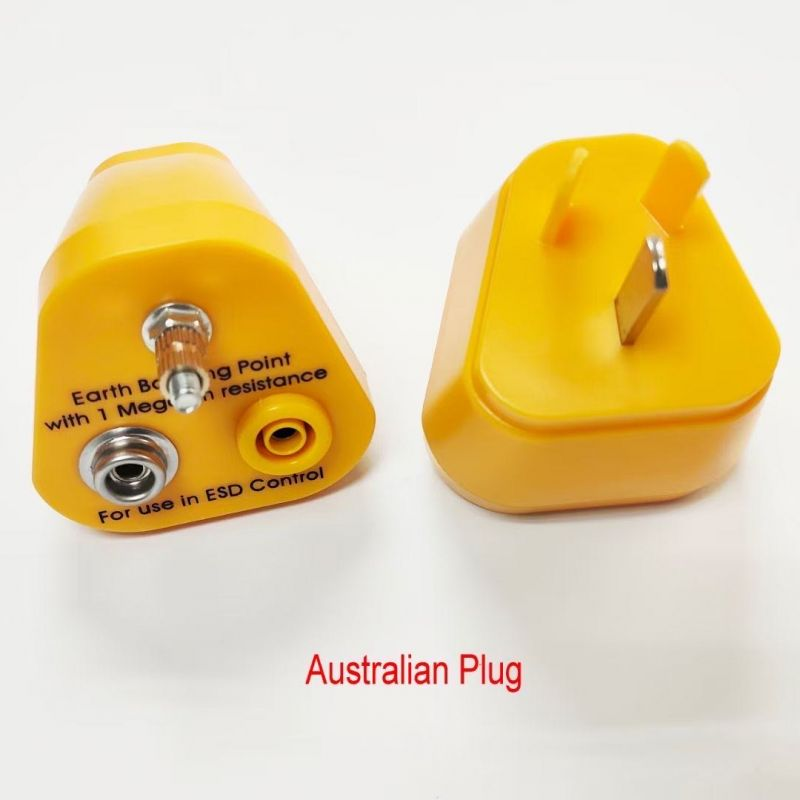

Our Australian Type Earth Bonding Plug is a premium grounding solution engineered to meet the rigorous demands of ESD-protected environments and industrial earthing applications. Manufactured to the Australian Standard AS/NZS 3112, this plug features a distinctive yellow housing with a robust earth pin design that ensures reliable connection to the protective earth of any standard Australian mains power socket.
The plug is configured with an advanced connectivity panel on the front face, featuring 1 x M5 threaded stud, 1 x 10mm stud, and 1 x 4mm plug socket—a versatile combination that provides multiple grounding connection points for a wide range of equipment and accessories.
Key Product Specifications
Specification Detail
Standard AS/NZS 3112 (Australian/New Zealand)
Housing Colour Yellow
Earth Pin Configuration L-shaped for secure socket engagement
Front Interface1 x M5 Stud, 1 x 10mm Stud, 1 x 4mm Socket
Safety Feature Moulded insulating pins (live/neutral positions)
Application ESD protection & earth bonding
Engineered for Safety and Performance
Compliant Design: This plug connects exclusively to the earth conductor of the mains socket. The live and neutral positions are fitted with moulded insulating plastic pins, ensuring positive socket location without any risk of electrical conduction. This design feature provides complete safety for operators and equipment.
Multiple Connection Options: The combination of M5 and 10mm studs alongside a 4mm socket offers exceptional flexibility. Whether you need to connect ground cords, ESD wrist straps, bonding leads, or test equipment, this plug accommodates your requirements without the need for adaptors or additional hardware.
Robust Construction: The housing is manufactured from durable, impact-resistant materials suitable for both factory floor and field service conditions. The L-shaped earth pin provides secure engagement with standard Australian sockets, maintaining consistent low-resistance contact even with repeated use.
Product Advantages
Versatile Connectivity: The three-terminal interface allows simultaneous connection of multiple grounding accessories—ideal for comprehensive ESD workstations requiring wrist straps, mat grounding, and equipment bonding.
Standards Compliance: Supports compliance with ESD control programmes including ESD S20.20 and EN 61340-5-1. This plug is an essential component for facilities seeking to meet international electrostatic discharge management standards.
Simplified Setup: Simply insert the plug into any standard Australian 3-pin mains socket to instantly establish a reliable earth reference point. No special wiring, tools, or installation expertise is required.
Reliable Performance: The dedicated earth connection provides a consistent, low-impedance path to protective earth, ensuring effective static discharge control and equipment protection.
Typical Applications
ESD Protected Areas (EPAs) : Ideal for electronics manufacturing, repair facilities, and laboratories where electrostatic discharge poses a threat to sensitive components such as PCBs, hard drives, and semiconductors.
Workstation Grounding: Connect ESD-safe mats, wrist straps, continuous monitors, and footwear testers to a common earth reference point for a complete and compliant ESD control system.
Industrial and Maintenance: Suitable for field service environments and factory floor applications where temporary or permanent earth bonding is required for test equipment or personnel safety.
Equipment Earthing: Provides a practical connection point for earth bonding leads used in telecommunications, instrumentation, and control system maintenance.
Technical Support
For assistance with selecting the right earth bonding solution for your application, please contact our technical team. We offer comprehensive support for ESD compliance and industrial earthing requirements.
