In the world of electronics manufacturing and PCB (Printed Circuit Board) handling, proper storage and transportation are critical to maintaining product integrity and preventing costly damage. Introducing the SK1302 ESD Magazine Rack—a high-performance, adjustable, and durable solution designed specifically for the safe organization and movement *of PCBs. With its robust construction, ESD protection, and intelligent design, this magazine rack stands out as an essential tool for any electronics assembly line, repair station, or storage facility.
Product Overview & Key Specifications:
Model: SK1302
Product Name: ESD Magazine Rack
Primary Materials: Conductive PP/PPE, Zinc-Coated Steel, Aluminum Alloy

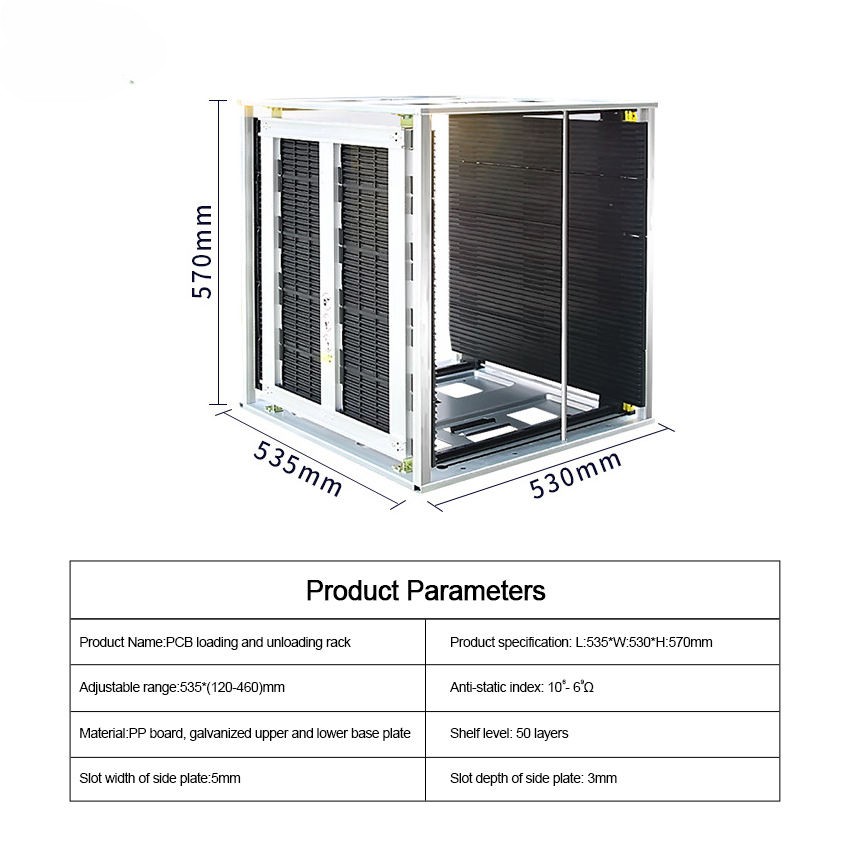

Contour Dimensions (L×W×H): 535 mm × 530 mm × 570 mm
Side Plate Slot Design: 3 mm depth, 5 mm width, 10 mm pitch
Adjustable Width Range: 50–460 mm
Maximum PCB Capacity: 50 boards
Adjustment Mechanism: Gear Adjustable System
Side Plates: Five Pieces Assembled
Base Material: Metal
Weight: 11 kg
Operating Temperature: Up to 80°C (suitable for PCB operating conditions)
Surface Resistance: Dissipative Type — 1.0×10⁴ Ω to 1.0×10⁹ Ω
Product Features:
1. Superior ESD Protection
The SK1302 is constructed with conductive PP/PPE materials and features a surface resistance in the dissipative range (10⁴–10⁹ Ω),
effectively controlling static discharge. This ensures that sensitive PCBs are protected from electrostatic damage during storage or transport.
2. Robust & Durable Build
Made with a combination of zinc-coated steel and aluminum alloy, this rack offers exceptional structural strength and corrosion resistance.
The five-piece assembled side plates enhance stability, while the metal base provides a solid foundation even in demanding industrial environments.
3. Precise Adjustability
The innovative gear-adjustment mechanism allows smooth and precise width adjustments from 50 mm to 460 mm,
making the rack compatible with a wide variety of PCB sizes.
The slot design (3 mm depth, 5 mm width, 10 mm pitch) ensures boards are held securely without slipping or vibrating.
4. High-Temperature Resistance
With a temperature tolerance of up to 80°C, the SK1302 is suitable for use in environments
where PCBs may be exposed to elevated temperatures during processes such as curing, testing, or soldering.
5. Optimized PCB Storage
Capable of holding up to 50 PCBs, this rack maximizes vertical space utilization without compromising accessibility.
Its open-frame design allows for easy visual inspection and quick retrieval of boards.
Intended Applications:
*The SK1302 ESD Magazine Rack is ideal for:
*PCB storage in manufacturing facilities
*Transporting boards between assembly stations
*Work-in-process (WIP) holding
*Staging areas for testing and inspection
*Repair and rework stations
*Cleanroom environments
PCB Transport & Storage Solutions:
*The SK1302 isn’t just a storage unit—it’s a comprehensive handling solution. Its design focuses on both protection and efficiency:
*Safe Transport: The sturdy construction and secure slotting prevent PCBs from shifting or contacting each other during movement,
reducing the risk of mechanical damage.
*ESD-Safe Mobility: The dissipative materials ensure that static charges are safely grounded,
making the rack suitable for use in ESD-protected areas (EPAs).
*Space Efficiency: With a compact footprint and high storage density, the rack helps organize production floors and reduce clutter.
*Ergonomic Handling: The rack’s dimensions and weight distribution allow for easy lifting and moving, even when fully loaded.
If you’re searching for a reliable, ESD-safe PCB magazine rack that combines durability,
flexibility, and static control, the SK1302 ESD Magazine Rack is an excellent choice.
Perfect for electronics manufacturers, PCB assemblers, and repair technicians,
this rack helps improve workflow efficiency while ensuring the safe handling of sensitive boards.
Keywords: ESD Magazine Rack, PCB Storage Rack, PCB Transport Solution, Conductive PP Rack, Adjustable PCB Holder, Static Safe Storage,
SK1302, Electronics Manufacturing Equipment, PCB Handling, ESD Protection Gear.
With its intelligent design and high-performance specs, the SK1302 is more than just a rack
—it’s a vital part of your ESD control strategy. Invest in a solution that protects your products and enhances your operational efficiency.
