In today's fast-paced electronics manufacturing and repair industries, efficient and safe storage of printed circuit boards (PCBs) is critical.
The SK1303 ESD Magazine Rack stands out as a premium storage solution designed to
meet the demands of modern ESD (electrostatic discharge) protected environments.
With its robust construction, intelligent design, and user-friendly features,
this magazine rack ensures that your sensitive PCBs are stored securely, accessed easily and protected from static damage.
Whether you are running a high-volume production facility, a specialized repair workshop,
or a laboratory setting, the SK1303 delivers unmatched functionality and reliability.
Below, we explore its detailed specifications, key advantages, and ideal applications
—making it clear why this product is a must-have for anyone working with PCBs.

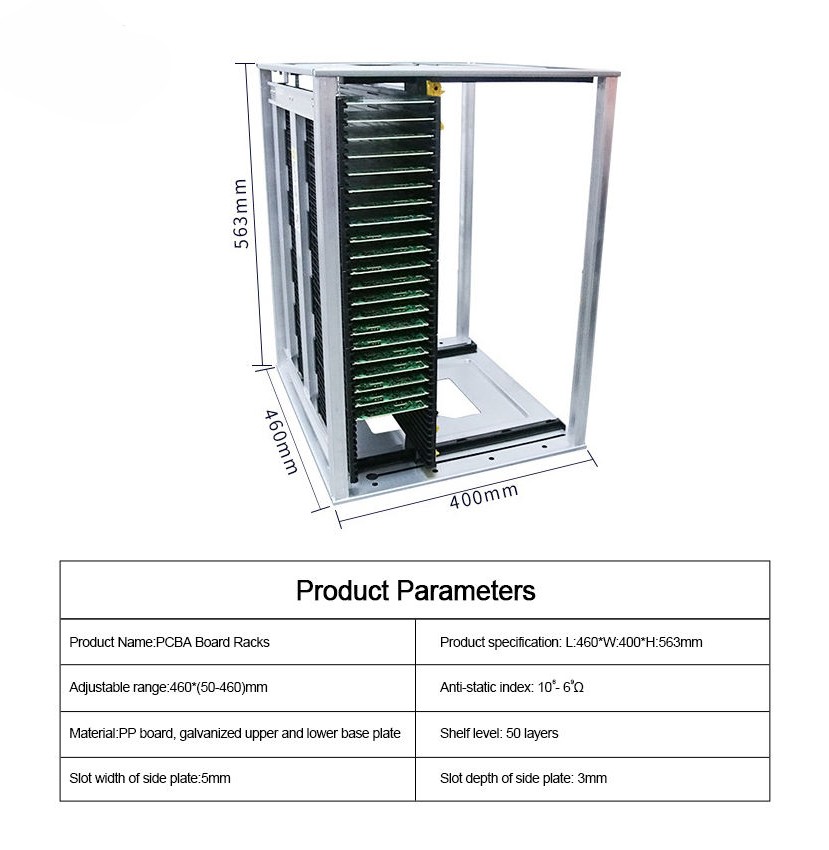

Detailed Product Specifications:
Model: SK1303
Overall Dimensions (mm): 400 (Width) × 460 (Length) × 563 (Height)
Weight: Approximately 8 kg
Top and Bottom Material: High-strength metal
Side Material: Solid whole plates
PCB Capacity: Up to 50 pieces
Minimum PCB Width Accommodated: 100 mm
Maximum PCB Width Accommodated: 330 mm
Slot Width (Side Plate): 5 mm
Slot Depth (Side Plate): 3.5 mm
Slot Pitch (Side Plate): 10 mm
Temperature Tolerance: Up to 80°C
Special Features: Removable end stop; gear-adjusting mechanism for simplified setup
Key Advantages of the SK1303 ESD Magazine Rack:
1. Superior Build Quality and Durability
Constructed with metal top and bottom frames and solid side plates,
the SK1303 is built to withstand rigorous daily use. The robust materials ensure long-term durability,
resistance to physical impacts, and reliable performance even in demanding industrial environments.
2. Enhanced Electrostatic Discharge (ESD) Protection
The entire structure is engineered to provide effective ESD protection,
safeguarding sensitive PCBs from static electricity that can cause irreversible damage.
This makes it an essential component in ESD-sensitive areas such as electronics manufacturing and assembly lines.
3. High Storage Capacity with Optimized Organization
With a capacity of up to 50 PCBs, this rack maximizes vertical space utilization without compromising accessibility.
The clever slot design (5mm width, 3.5mm depth, and 10mm pitch) allows for secure holding of boards of varying sizes,
reducing clutter and improving workflow efficiency.
4. User-Friendly Adjustability
The innovative gear-adjusting mechanism simplifies the process of configuring the rack for different PCB dimensions.
This feature eliminates the need for complex tools or time-consuming adjustments,
allowing users to quickly adapt the storage setup to their specific requirements.
5. Thermal Resistance
Capable of tolerating temperatures up to 80°C, the SK1303 is suitable for use in environments where thermal exposure is a concern,
including near soldering stations or in settings where boards may still be warm after processing.
6. Safety and Accessibility
The removable end stop design provides added flexibility when loading or retrieving PCBs,
reducing the risk of damage to both the operator and the boards.
This feature also facilitates easier cleaning and maintenance.
7. Space-Efficient Design
Despite its high storage capacity, the rack’s compact footprint (400W x 460L x 563H) makes it ideal for workbenches, shelves, or mobile carts,
helping users make the most of their available space.
Ideal Applications and Use Cases:
The versatility and reliability of the SK1303 ESD Magazine Rack make it suitable for a wide range of scenarios:
Electronics Manufacturing Plants:
Perfect for storing in-process PCBs during assembly, testing, or quality control stages.
Its ESD-safe properties ensure compliance with industry standards.
Repair and Rework Centers:
Technicians can safely store and organize boards waiting for service,
reducing handling errors and minimizing static-related failures.
Laboratories and Research Facilities:
Provides an organized and static-safe storage solution for prototyping and experimental boards.
Telecommunications and Data Centers:
Useful for storing spare or deprecated PCBs in a structured and easily accessible manner.
Educational Institutions:
Ideal for training workshops and electronics labs where students learn PCB handling and storage best practices.
Why Choose the SK1303 ESD Magazine Rack?
Investing in the SK1303 means investing in efficiency, safety, and scalability.
Its thoughtful design addresses common pain points in PCB storage
—offering durability, electrostatic protection, easy adjustability, and a compact form factor.
By streamlining organization and enhancing protection, this magazine rack helps businesses reduce waste,
improve productivity, and maintain high quality standards in electrostatic sensitive environments.
