In the fast-paced world of electronics manufacturing and repair, organization, efficiency, and electrostatic discharge (ESD) protection are paramount. The SK1304 ESD Magazine Rack is engineered to meet these critical demands head-on. This robust, high-capacity storage system is designed for professionals who require a reliable, scalable, and safe method for handling and storing printed circuit boards (PCBs). With a thoughtful design that incorporates durable materials, intelligent adjustability, and essential ESD-safe properties, this magazine rack is an indispensable tool for any workshop, production line, or laboratory environment. This article delves into the detailed specifications, standout features, significant advantages, and diverse applications of the SK1304.

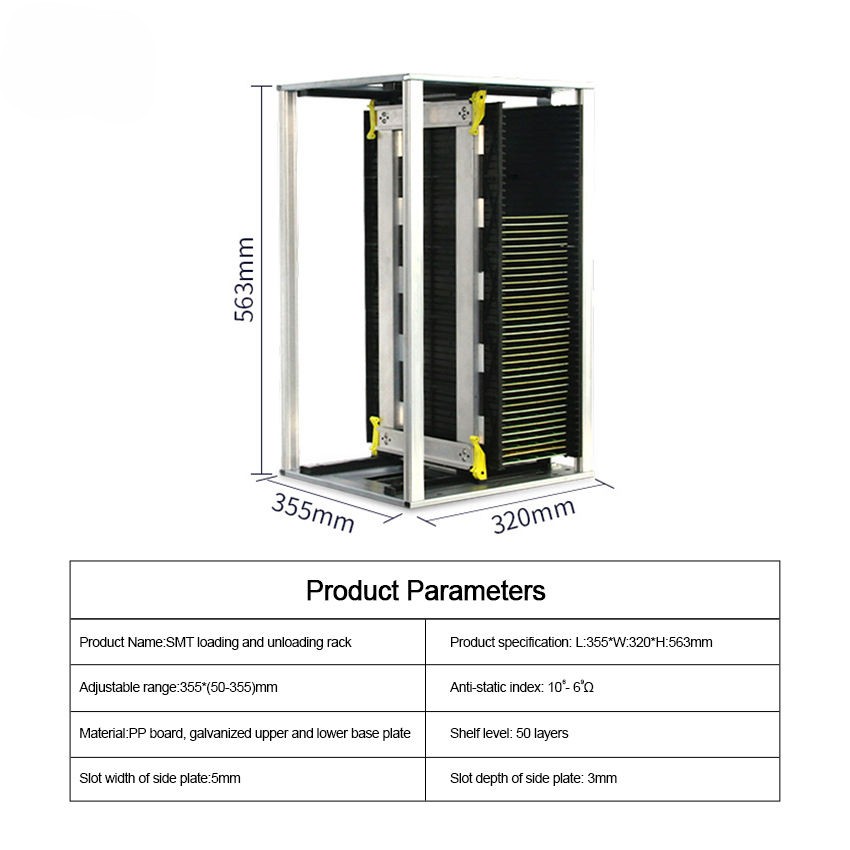

Product Specifications at a Glance
Understanding the core dimensions and construction of the SK1304 is key to recognizing its value. Below is a concise breakdown of its fundamental specifications:
Model: SK1304
Overall Dimensions (L x W x H): 355mm (Length) x 320mm (Width) x 563mm (Height)
Weight: Approximately 5.5 kg (12.1 lbs) – offering a solid, stable feel without being cumbersome.
Primary Material: Metal construction for the top and bottom frames, ensuring structural integrity and longevity.
Side Material: Solid, whole plates provide superior support and durability compared to wire or segmented designs.
PCB Capacity: Holds up to 50 boards, maximizing storage density in a compact footprint.
PCB Width Range: Accommodates boards from a minimum width of 50mm up to a maximum of 250mm.
Slot Specifications: Side plates feature slots with a width of 5mm, a depth of 3.5mm, and a consistent pitch of 10mm.
Temperature Resistance: Tolerates environments up to 80°C, making it suitable for various industrial settings.
Key Features: Includes a removable end stop for easy loading and unloading and a precision gear adjustment mechanism for simplified setup.
Key Product Features
The SK1304 ESD Magazine Rack is packed with features designed to enhance usability and protect sensitive components.
1.Robust Metal Construction: Built with high-quality metal for the top and bottom frames,
this rack offers exceptional stability and load-bearing capacity, preventing tipping or bending even when fully loaded with 50 PCBs.
2.Solid Side Plate Design: Unlike racks with wire meshes or thin supportsthe use of whole plates on the sides provides unwavering support for PCBs across their entire surface,
minimizing the risk of flexing, sagging, or damage to the boards.
3.High-Capacity, Space-Efficient Design: With the ability to store 50 PCBs in a unit measuring just 320mm x 355mm,
it optimizes bench or shelf space dramatically, promoting a cleaner and more organized workspace.
4.Precision Gear Adjustment Mechanism: This is a standout feature that simplifies the setup process.
Users can effortlessly and accurately adjust the slot spacing to match different PCB widths with a simple turn of a gear,
ensuring a perfect, secure fit every time without manual guesswork.
5.ESD-Safe Properties: The entire unit is designed to be ESD-safe,
helping to dissipate electrostatic charges that
can easily destroy sensitive electronic components on unprotected PCBs during handling and storage.
6.Removable End Stop: This clever design element allows users to quickly remove one end of the rack,
facilitating smooth and safe insertion and removal of multiple boards at once without scraping or snagging.
7.Fine Slot Pitch Configuration: The 10mm slot pitch provides excellent flexibility for adjusting to various board thicknesses and sizes,
allowing for efficient storage of diverse PCB types within the same unit.
Ideal Product Applications
The versatility and robustness of the SK1304 ESD Magazine Rack make it suitable for a wide array of professional settings, including:
Electronics Manufacturing Assembly Lines:
Ideal for staging PCBs before and after the assembly process, solder reflow, or testing.
PCB Testing and Quality Control (QC) Stations:Provides organized storage for boards awaiting validation or those that have passed/failed inspection.
Telecommunications and Data Center Repair Workshops: Essential for safely storing server motherboards, network cards, and other critical hardware components.
Industrial Automation and Control Systems Maintenance: Perfect for holding various control boards, PLCs, and interface cards.
Research and Development (R&D) Laboratories:
Helps engineers keep prototype boards organized, accessible, and protected from ESD during development cycles.
Audio-Visual and Consumer Electronics Repair Shops: Offers a professional storage solution for everything from gaming consoles and laptops to home theater components.
Conclusion:
The SK1304 ESD Magazine Rack is more than just a storage unit; it is a critical investment in productivity, organization, and component safety. Its thoughtful design, centered around a durable metal frame, solid side plates, and an ingenious gear-adjust system, addresses the common pain points of PCB handling directly. By choosing the SK1304, businesses and technicians not only safeguard their sensitive electronics from physical and electrostatic damage but also streamline their workflows for greater efficiency and output. For anyone serious about electronics manufacturing, repair, or development, this magazine rack is an essential piece of equipment that delivers immediate and long-term benefits.
