In today’s high-precision electronics manufacturing and assembly environments, protecting sensitive components from electrostatic discharge (ESD) is critical. Introducing the SK1305 ESD Magazine Rack—a expertly engineered storage solution designed to organize, protect, and streamline workflow in ESD-sensitive areas. Combining advanced materials, intelligent design, and user-friendly functionality, this magazine rack is an essential tool for industries where reliability and efficiency are non-negotiable.
Product Overview：

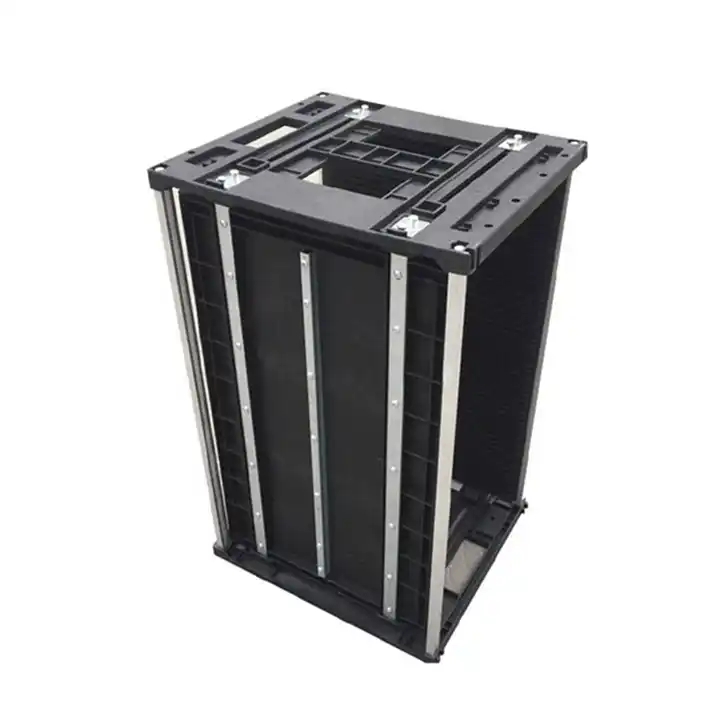

The SK1305 ESD Magazine Rack is a high-performance storage system specifically designed for handling and storing printed circuit boards (PCBs)
and other static-sensitive devices. With a robust structure and ESD-safe properties, it ensures that your components remain secure, organized,
and free from damage caused by electrostatic exposure.
Ideal for use in electronics manufacturing, repair stations, laboratories, and cleanrooms,
this rack helps maintain an electrostatic-protected area (EPA) while optimizing spatial organization.
Key Features & Selling Points：
1. Advanced ESD-Safe Materials
Constructed with Conductive PP/PPE components, zinc-coated steel, and aluminum alloy,
the rack offers superior durability and continuous electrostatic dissipation.
Surface Resistance: Dissipative type with a resistance range of 1.0×10 4Ω to 1.0×10 9 Ω
effectively grounding any static build-up and protecting sensitive components.
2. Adjustable and Versatile Design
Adjustable Width: Side plates can be easily adjusted from 80mm to 250mm,
making the rack compatible with a wide variety of PCB sizes.
Screw Adjustment Mechanism: Precisely modify the slot width with a simple screw-based system
—no tools required for daily adjustments, enabling quick reconfiguration as needed.
3. Optimized Storage Capacity:
High-Density Storage: Accommodates up to 50 PCBs in a single unit,
maximizing vertical space without compromising accessibility.
Specially Designed Slots: Each side plate features slots with:
Depth: 3.5mm
Width: 7mm
Pitch: 10mm
This design ensures secure holding and easy insertion/removal of boards.
4. Heat Resistance
Withstands temperatures up to 80°C, making it suitable for environments
where boards may be stored shortly after undergoing thermal processes.
5. Sturdy Yet Lightweight
Weighing only 5kg, the unit is portable and easy to relocate within the workspace.
The combination of plastic and metal offers strength without excess bulk.
6. Full-Side Plate Design
The one-piece side plate construction enhances stability
and provides consistent support across all stored boards, minimizing the risk of bending or misalignment.
Technical Specifications:
Parameter Value
Model Number SK1305
Product Name ESD Magazine Rack
Material Conductive PP/PPE, Zinc-Coated Steel, Aluminum Alloy

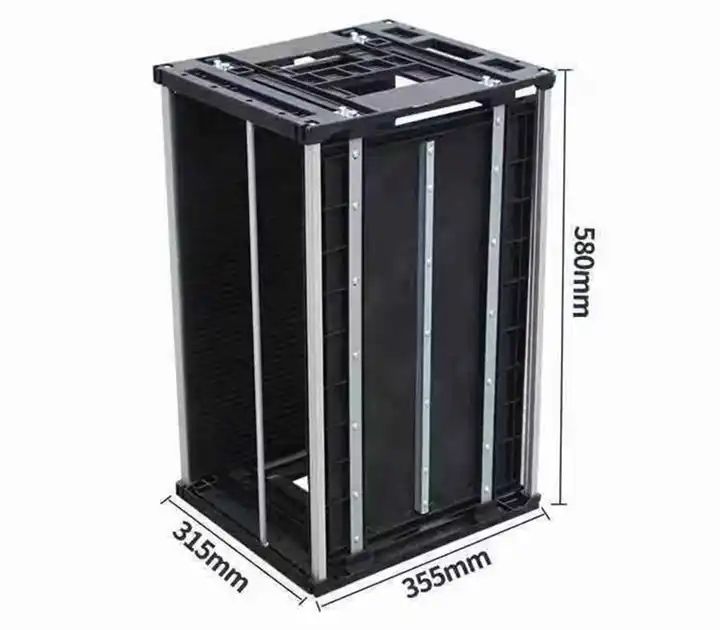

Contour Size (L×W×H) 355 mm × 315 mm × 580 mm
Slot Depth 3.5 mm
Slot Width 7 mm
Slot Pitch 10 mm
Adjustable Width Range 80–250 mm
PCB Storage Capacity 50 boards
Adjustment Method Screw-adjustable
Side Plate Design Whole plate
Base Material Plastic
Weight 5 kg
Max Temperature Resistance 80°C (PCB temperature only)
Surface Resistance: 1.0×10 4Ω to 1.0×10 9 Ω
Ideal Application Scenarios:
The SK1305 ESD Magazine Rack is versatile enough for a broad spectrum of applications:
Electronics Manufacturing Lines: Store PCBs between assembly stages without risk of ESD damage.
Testing and QA Departments: Keep boards organized and protected during inspection and testing.
Research and Development Labs: Ideal for prototyping and experimental setups where component safety is paramount.
Repair and Rework Stations: Accessible storage for boards awaiting service or diagnostics.
Cleanroom and EPA Environments: Maintains ESD compliance in controlled atmospheres.
Why Choose the SK1305 ESD Magazine Rack?
This isn’t just another storage rack—it’s a vital component of your ESD control strategy.
By integrating this magazine rack into your workflow, you benefit from:
Enhanced Productivity: Reduce time spent searching for boards with a clearly organized system.
Improved Safety: Meet international ESD protection standards (e.g., ANSI/ESD S20.20, IEC 61340-5-1).
Long-Term Reliability: Durable materials and thoughtful design ensure years of trouble-free service.
Scalability: Suitable for both small workshops and large-scale industrial settings.
Don't let electrostatic discharge compromise your product quality or operational efficiency.
Invest in a storage solution that offers protection, adaptability, and smart design—all in one package.
Perfect for: Electronics manufacturers, tech enterprises, aerospace industries,
automotive electronics suppliers, and anyone dedicated to precision and quality.
