In today’s fast-paced electronics manufacturing and assembly environments, efficient and safe handling of sensitive components is critical.

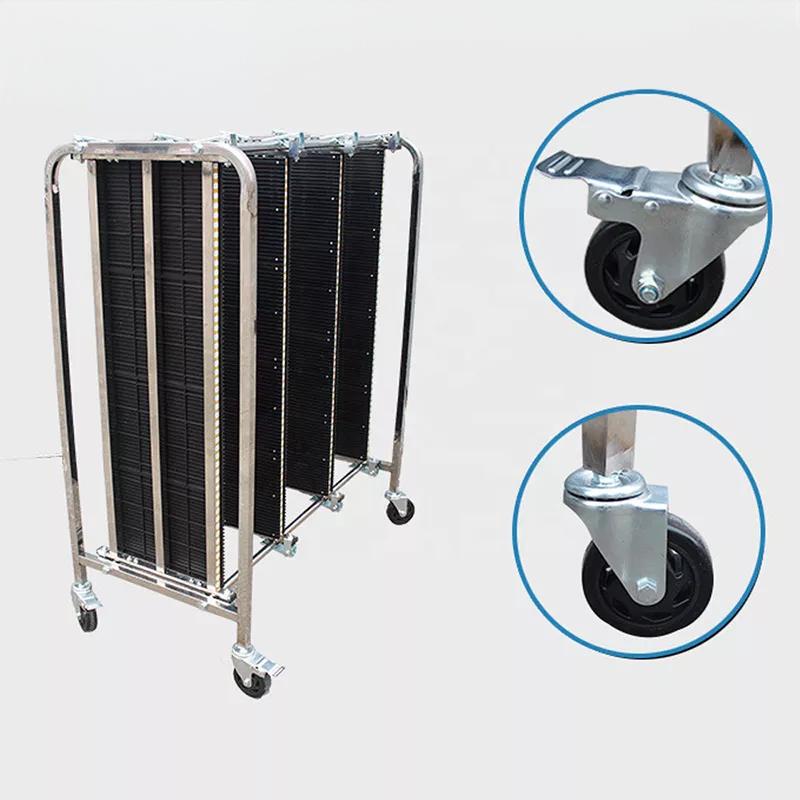

The SK460-5 Columns ESD SMT Trolley Cart offers an ideal blend of functionality, durability, and electrostatic discharge (ESD) protection.
Designed for use in industries where static sensitivity is a major concern, this trolley cart ensures that electronic parts such as PCBs,
ICs, and other static-sensitive devices are stored and transported with maximum protection against ESD damage.
Crafted from high-quality Stainless Steel and PP Plastic, this trolley cart combines strength with static-safe properties.
Its robust design includes 5 columns, each capable of holding up to 100 pieces, providing ample organized storage in a compact footprint.
With dimensions of 1000mm (L) x 550mm (W) x 1260mm (H),
it is perfectly sized for maneuverability in tight spaces such as SMT lines, assembly areas, and cleanrooms.
Detailed Product Parameters:

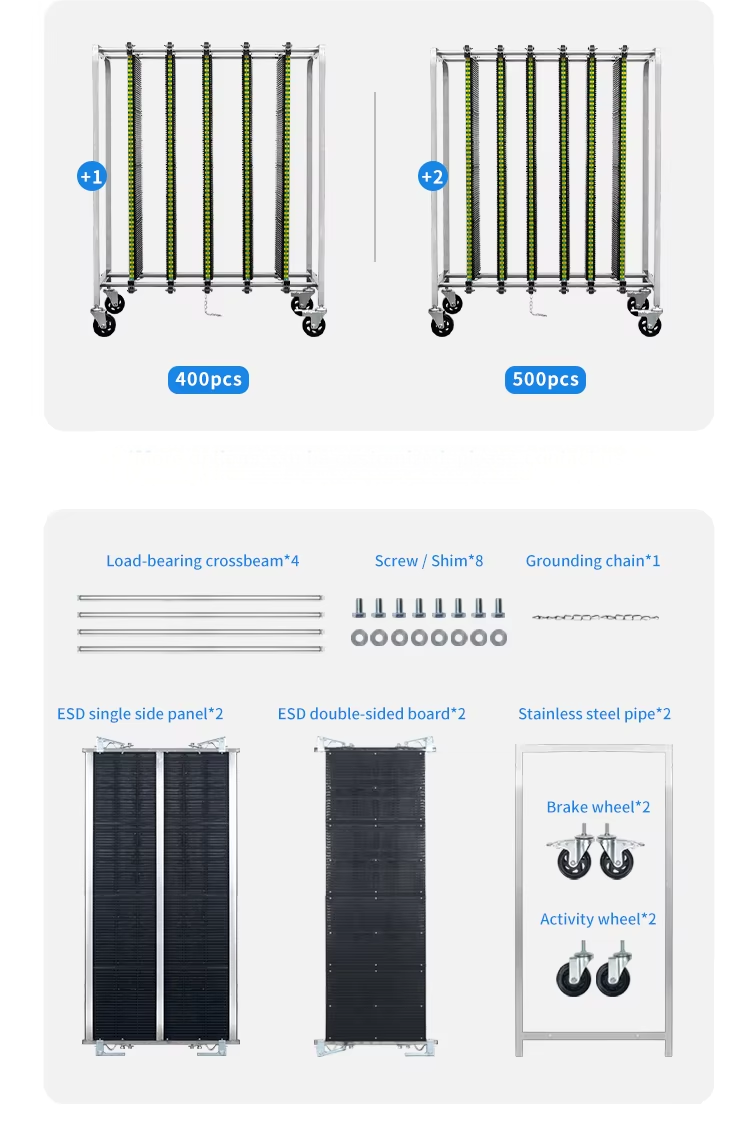

Material: Stainless Steel + PP Plastic

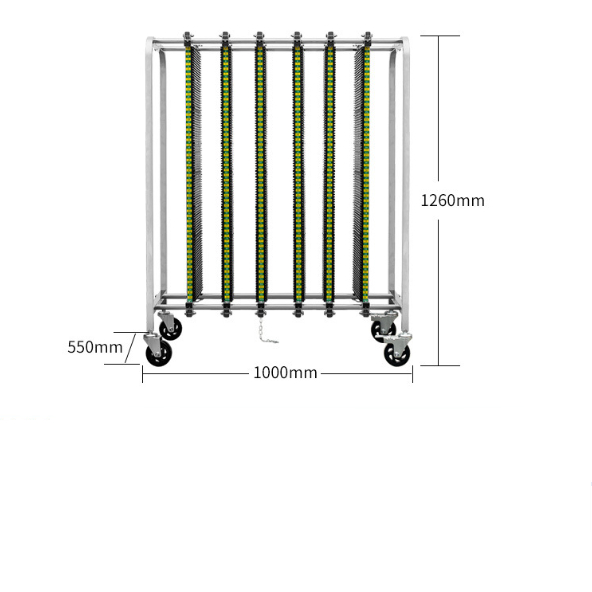

Dimension (L x W x H): 1000mm x 550mm x 1260mm
Side Panel Length: 460mm
Storage Capacity: 5 columns
Storage per Column: 100 pieces
Type: Plug-in design
Slot Depth: 5mm
Slot Width: 4.5mm
Slot Distance: 10mm
Panel Thickness: 10mm

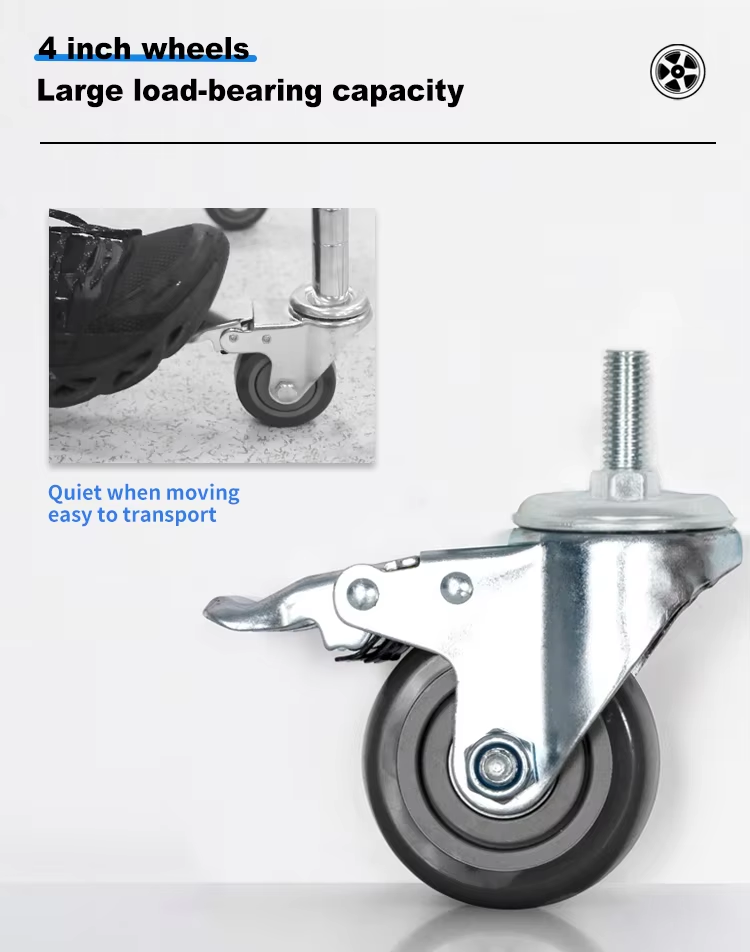

Wheels: 4 x 4-inch ESD Rubber Wheels

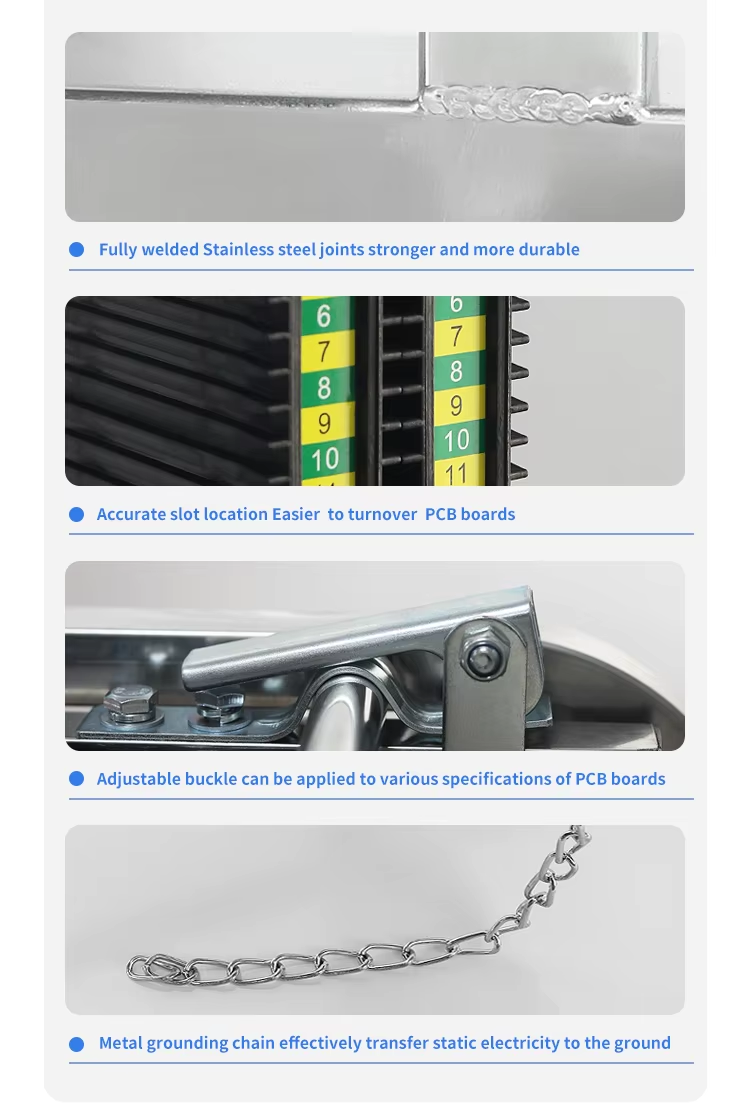

Additional Feature: Conductive chain for grounding

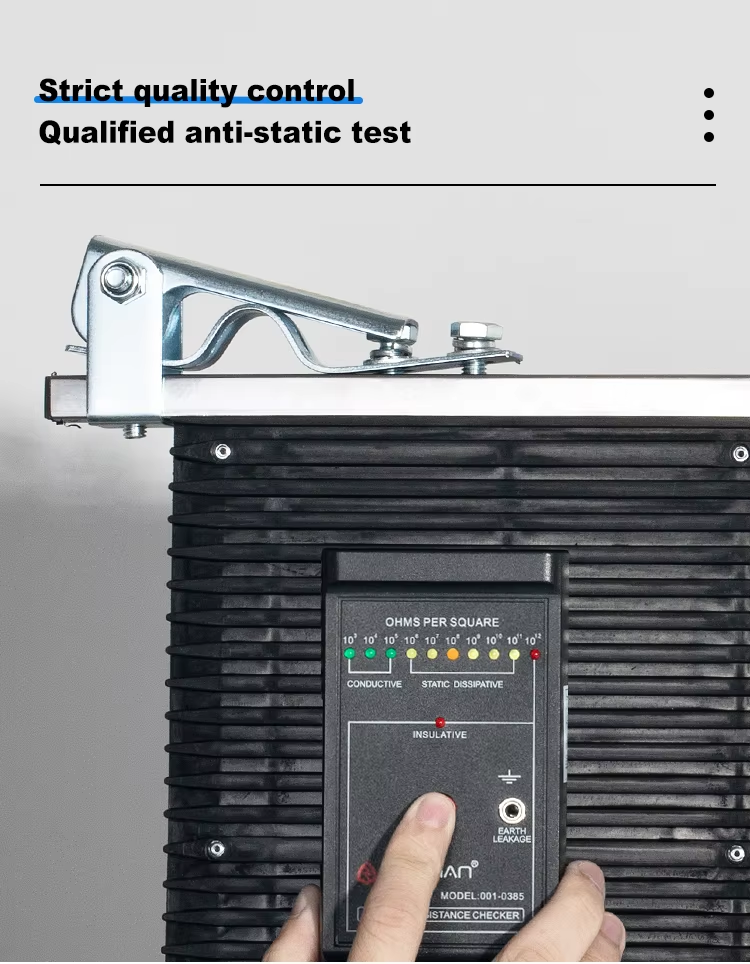

Surface Resistance: 10⁶–10⁹ Ω
Product Features:
Superior ESD Protection:
With a surface resistance of 10⁶–10⁹ Ω, the trolley effectively dissipates static electricity,
preventing damage to sensitive electronic components.
Durable Construction:
The combination of stainless steel and anti-static PP plastic ensures long-term durability and reliability,
even in demanding industrial environments.
High Storage Capacity:
Featuring 5 columns with each column holding up to 100 pieces, this cart optimizes vertical space, making it ideal for high-volume workflows.
Plug-in Design:

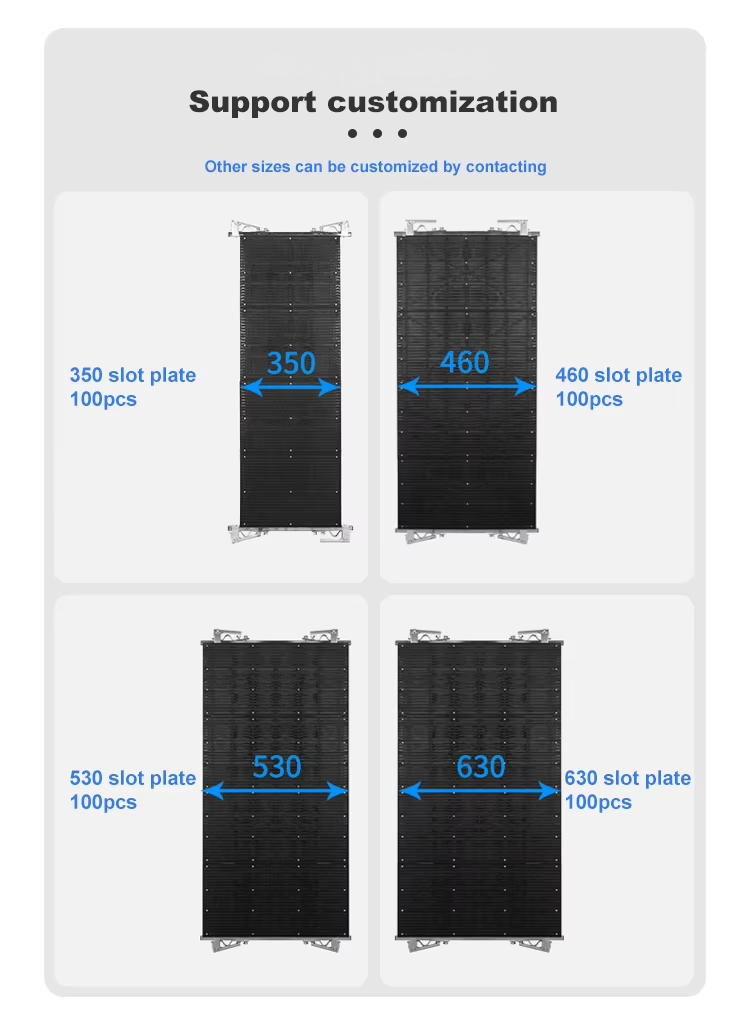

The innovative plug-in slot design allows for easy adjustment and customization of storage space, accommodating components of various sizes.
Maneuverability:
Equipped with four 4-inch ESD rubber wheels, the trolley moves smoothly across floors while maintaining continuous static dissipation.
The conductive chain ensures consistent grounding during movement.
Precision Engineering:
The slots are designed with a depth of 5mm, width of 4.5mm, and spaced 10mm apart,
providing secure placement for panels and boards without slipping or misalignment.
Applications and Use Cases:
The SK460-5 Columns ESD SMT Trolley Cart is widely used across industries
where electrostatic discharge protection is non-negotiable. Its primary applications include:
SMT Production Lines:
Ideal for transporting and storing surface-mount technology components such as PCBs and semiconductors without risk of ESD damage.
Electronics Assembly:
Suitable for workshops and assembly units that handle integrated circuits, microchips, and other static-sensitive devices.
Cleanroom Environments:
The trolley’s ESD-safe materials and design make it appropriate for cleanrooms and ESD-protected areas (EPAs).
Repair and Rework Stations:
Facilitates safe temporary storage and mobility for devices under repair.
Laboratories and Testing Facilities:
Used for organizing and moving components during quality assurance and testing processes.
Who Should Use This Product?
This trolley cart is designed for:
Electronics manufacturers
SMT and PCB assembly facilities
Industrial automation units
Research and development labs
Aerospace and automotive electronics suppliers
Medical device manufacturers
Any organization that values component safety, workflow efficiency,
and compliance with ESD standards will benefit from integrating this cart into their operations.
Why Choose the SK460-5 Columns ESD SMT Trolley Cart?
Electrostatic discharge is one of the leading causes of failure in electronic components.
Even a small static charge can damage or degrade sensitive parts, leading to increased rejection rates,
higher costs, and reduced product reliability. The SK460-5 Columns ESD SMT Trolley Cart is specifically designed
to mitigate these risks by providing a controlled environment for both storage and transportation.
Its plug-in slot design not only improves organization but also minimizes physical contact with components,
further reducing the potential for contamination and mechanical damage.
The ESD rubber wheels and conductive chain ensure that the cart remains grounded at all times, whether stationary or in motion.
Highlighted Key Advantages:
Enhanced Component Safety: Reduces E-related failures in production.
Space Efficiency: Maximizes storage without occupying excessive floor space.
Easy to Move: Large wheels facilitate easy transport across facilities.
Customizable Storage: Adjustable slots support a variety of component sizes.
Compliance Meets Industry Standards: Perfect for ISO-compliant and ESD-aware environments.
The SK460-5 Columns ESD SMT Trolley Cart is more than just a storage unit
—it is an essential tool for enhancing productivity and maintaining high quality standards
in electrostatic discharge sensitive environments. Whether you are in electronics manufacturing, assembly,
or testing, this trolley offers a reliable, scalable, and efficient solution for your material handling needs.
Invest in the SK460 trolley cart to protect your components, streamline operations, and support a static-safe workplace.
Keywords: ESD Trolley Cart, SMT Trolley, SK460 ESD Cart, Static-Safe Storage, Electronics Transport Cart,
ESD Protection Solutions, SMT Storage Solutions, Stainless Steel Trolley, PP Plastic Trolley, Plug-in Storage System,
ESD Safe Wheels, Conductive Chain Trolley, Workshop Storage Cart, Cleanroom ESD Equipment, PCB Storage Cart.
