In the world of electronic manufacturing, prototyping, and repair, ensuring the integrity of printed circuit boards (PCBs) is paramount. Electrostatic discharge (ESD) can cause irreversible damage to sensitive components, leading to costly failures and production delays. Meet the SK476010 ESD PCB Trolley Storage—a meticulously engineered solution designed to provide safe, organized, and efficient storage and transportation for PCBs. With a robust construction, intelligent design, and ESD-safe properties, this trolley is an essential asset for any electronics workshop, production floor, or laboratory environment.

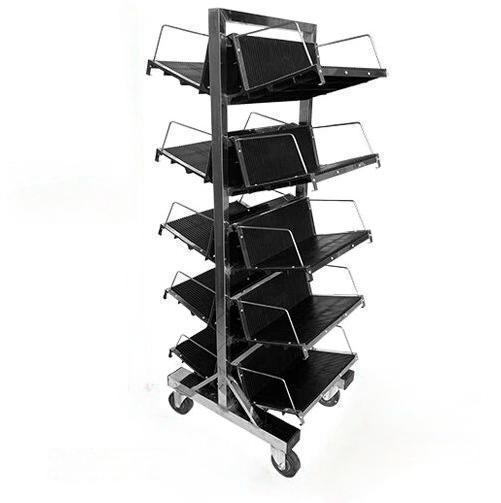

The SK476010 is a vertical insertion-type PCB storage trolley equipped with 10 removable hanging baskets, offering a total storage capacity of 380 PCBs. Constructed from high-quality 202 stainless steel and polypropylene (PP) plastic, it combines durability with functionality. The unit is mounted on four 4-inch ESD rubber wheels for easy mobility and includes a conductive chain to ensure continuous grounding. With a surface resistance of 10⁶–10⁹Ω, it effectively dissipates electrostatic charges, protecting your components from ESD damage.
Detailed Product Parameters
Model: SK476010
Material: 1.0mm thickness 202 Stainless Steel + PP Plastic
Overall Dimensions (L x W x H): 550mm × 600mm × 1200mm
Hanging Basket Quantity: 10 pieces
Hanging Basket Dimensions: 410mm (L) × 280mm (W) × 160mm (H)
Storage Capacity per Basket: 38 PCBs
Total PCB Storage Capacity: 380 PCBs
Type: Vertical Insertion Type
Slot Depth: 5mm
Slot Width: 2.8mm
Slot Distance: 9.8mm
Slot Length: 210mm
Wheels: 4 x 4-inch ESD Rubber Wheels
Additional Feature: Conductive Chain
Surface Resistance: 10⁶–10⁹Ω
Product Features
Superior ESD Protection
The trolley is engineered with ESD-safe materials that maintain a surface resistance within the range of 10⁶–10⁹Ω.
This ensures gradual dissipation of static charges, preventing sudden discharges that could harm sensitive PCBs.
High Storage Capacity
With 10 removable baskets, each capable of holding 38 PCBs, the trolley maximizes vertical space utilization.
Its smart slot design allows for easy insertion and retrieval of boards without physical contact.
Durable Construction
The combination of 202 stainless steel and PP plastic offers excellent corrosion resistance, mechanical strength,
and long-term reliability. The 1.0mm thickness ensures structural stability even when fully loaded.
Mobility and Flexibility
Equipped with four 4-inch ESD rubber wheels, the trolley can be moved smoothly across different floor surfaces.
The conductive chain provides continuous grounding while in motion.
Organized and Accessible Storage
The vertical insertion design with precisely spaced slots (2.8mm width, 9.8mm apart) helps organize PCBs by size or type,
reducing clutter and improving workflow efficiency.
Modular and Scalable
The hanging baskets are removable, allowing users to reconfigure the storage layout based on current needs.
Additional baskets can be added for expanded capacity.
Product Benefits
Prevents ESD Damage: Safeguards expensive electronic components during storage and handling.
Saves Space: Vertical design utilizes limited floor space efficiently.
Enhances Productivity: Reduces time spent searching for boards and minimizes handling errors.
Improves Workplace Safety: Reduces tripping hazards and physical strain associated with manual carrying.
Durable and Long-Lasting: Resists wear, impact, and environmental factors commonly found in industrial settings.
Product Applications
The SK476010 ESD Trolley is ideal for a wide range of scenarios where sensitive electronic components are handled:
Electronics Manufacturing: For storing and transporting PCBs between assembly stations.
Repair and Rework Centers: To keep boards organized and protected during diagnostics and servicing.
Laboratories and Testing Facilities: Where ESD compliance is critical for accurate results.
Aerospace and Defense Industries: For handling high-reliability PCBs in controlled environments.
Telecommunications and Data Centers: During equipment maintenance and part replacements.
The SK476010 ESD PCB Trolley Storage is more than just a storage unit—it’s a vital tool for enhancing efficiency,
ensuring component safety, and maintaining ESD compliance in modern electronic environments.
Whether you are a small repair shop or a large-scale manufacturer,
this trolley offers the perfect blend of capacity, mobility, and protection.
