In the fast-paced world of electronics manufacturing, electrostatic discharge (ESD) can cause irreversible damage to sensitive components, leading to significant financial losses and production delays. To mitigate these risks, the SK530-3Columns ESD SMT Trolley Cart offers a robust, efficient, and ESD-safe storage and transportation system. Designed with precision and durability in mind, this trolley cart is an indispensable tool for Surface Mount Technology (SMT) lines, assembly areas, and cleanroom environments. Below, we explore its detailed specifications, standout features, and the critical reasons why every electronics manufacturer should invest in this product.

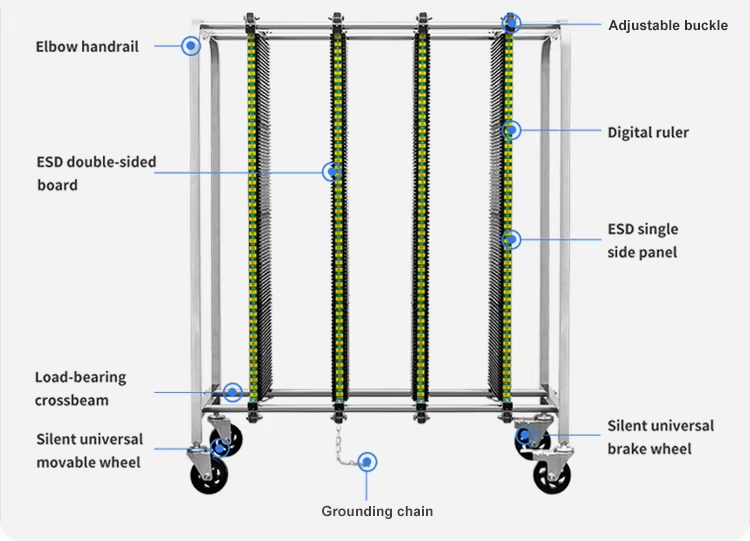

Detailed Product Specifications
Material: Constructed from high-quality Stainless Steel and anti-static PP Plastic, ensuring durability, corrosion resistance, and ESD protection.
Dimension (L x W x H): 900mm (Length) x 650mm (Width) x 1260mm (Height). Its compact design optimizes floor space while maximizing storage capacity.

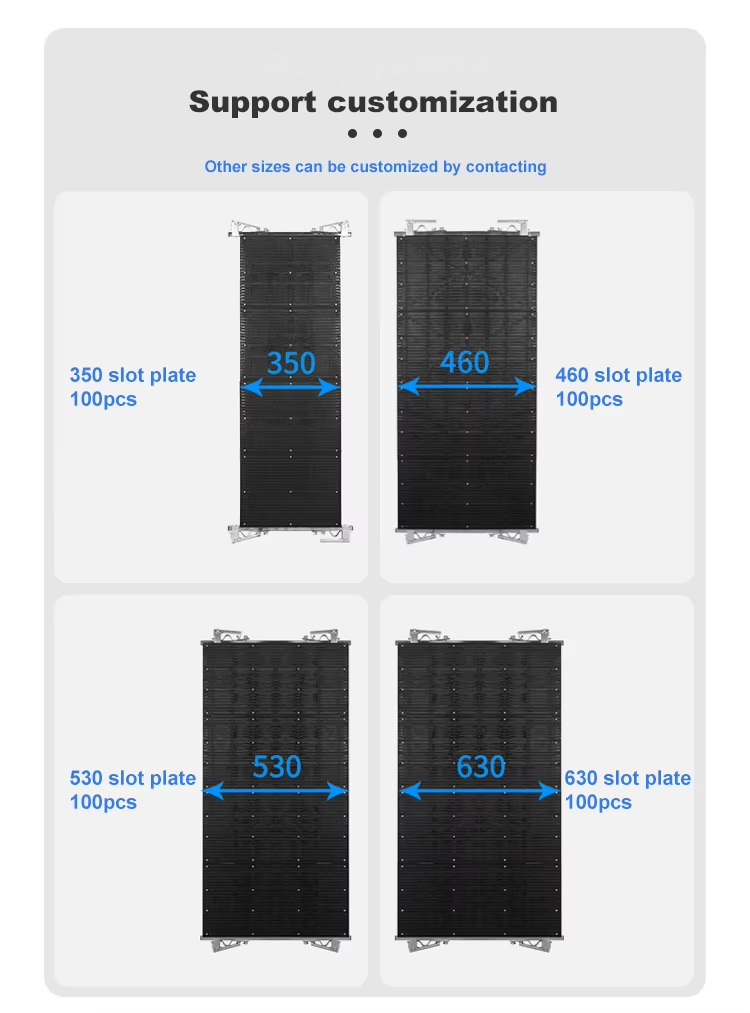

Side Panel Length: 530mm, providing ample space for organized storage.
Capacity: 3 columns, each capable of holding 100 trays, resulting in a total storage capacity of 300 trays.

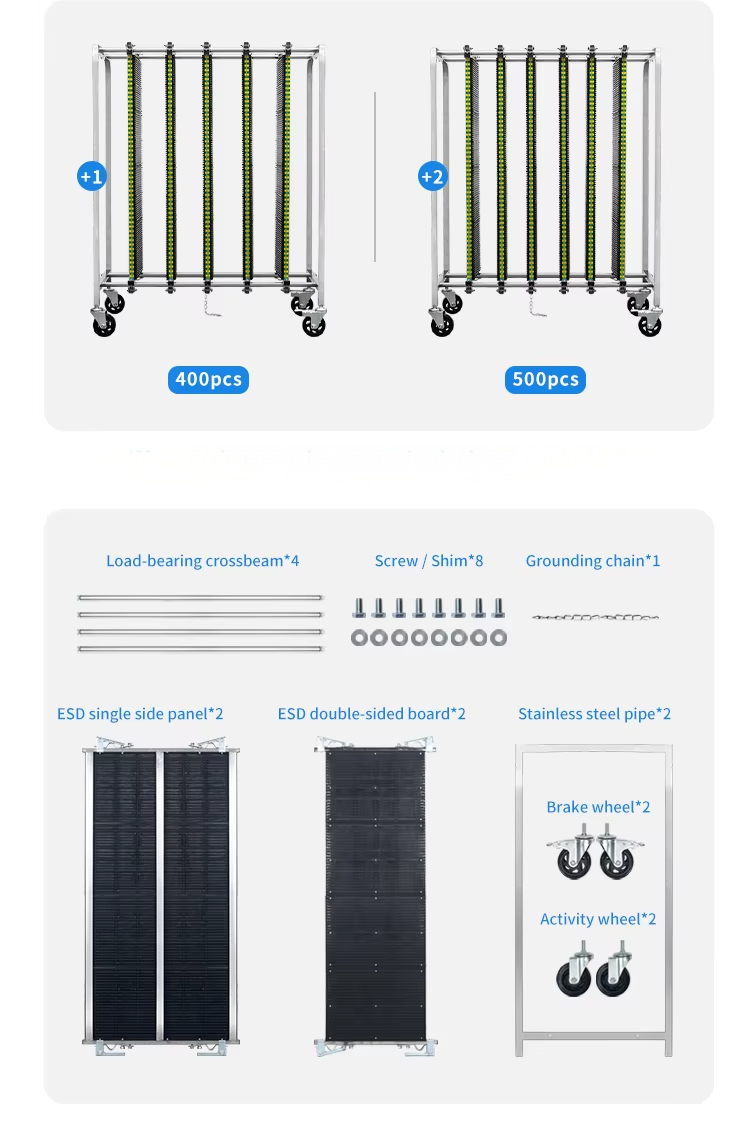

Type: Plug-in design for easy assembly, disassembly, and customization.
Slot Depth: 5mm, ensuring secure placement of trays.
Slot Width: 4.5mm, compatible with standard SMT trays.
Slot Distance: 10mm, allowing efficient airflow and accessibility.
Panel Thickness: 10mm, offering structural integrity and long-term reliability.

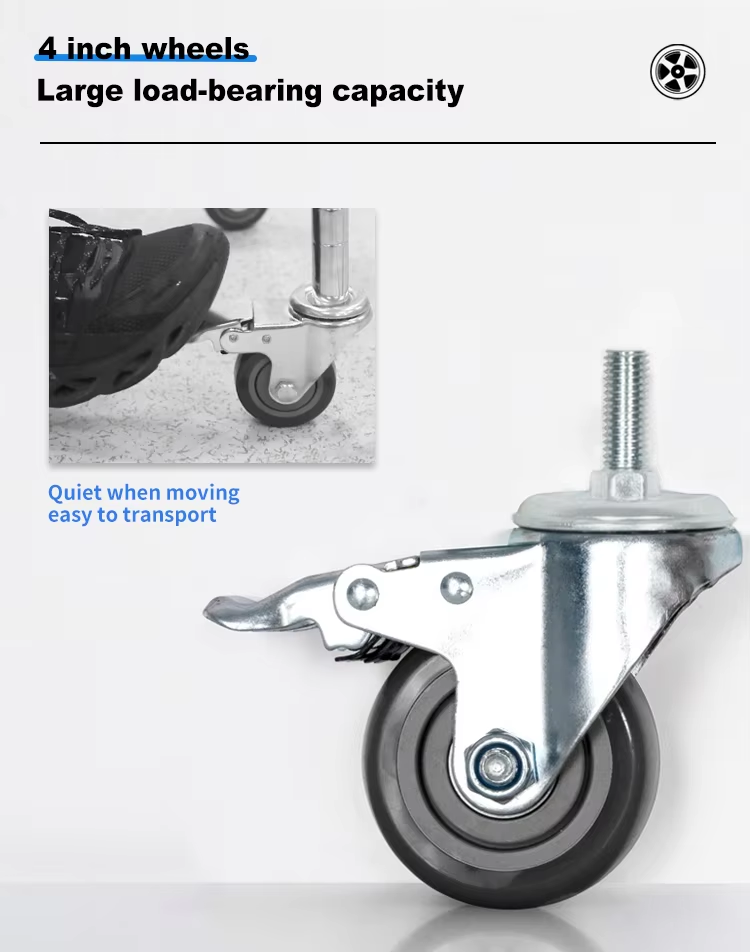

Wheels: Equipped with 4 pieces of 4-inch ESD Rubber Wheels, providing smooth mobility and static dissipation.

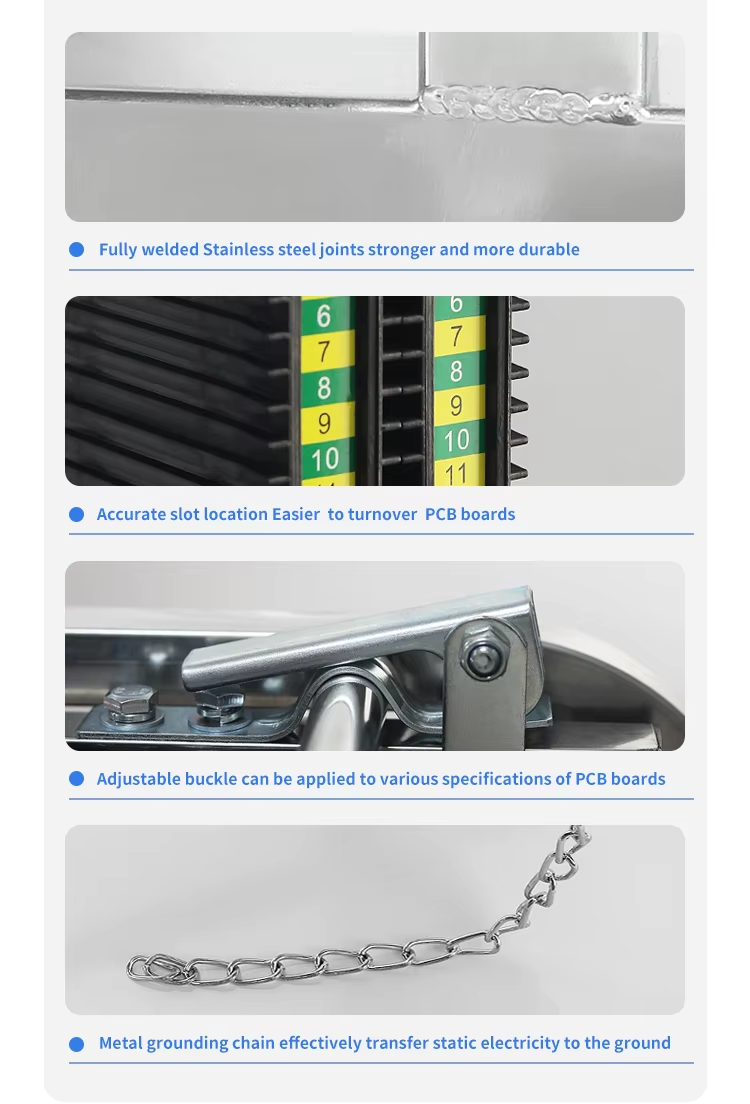

Additional Features: Includes a conductive chain for grounding and continuous ESD protection.

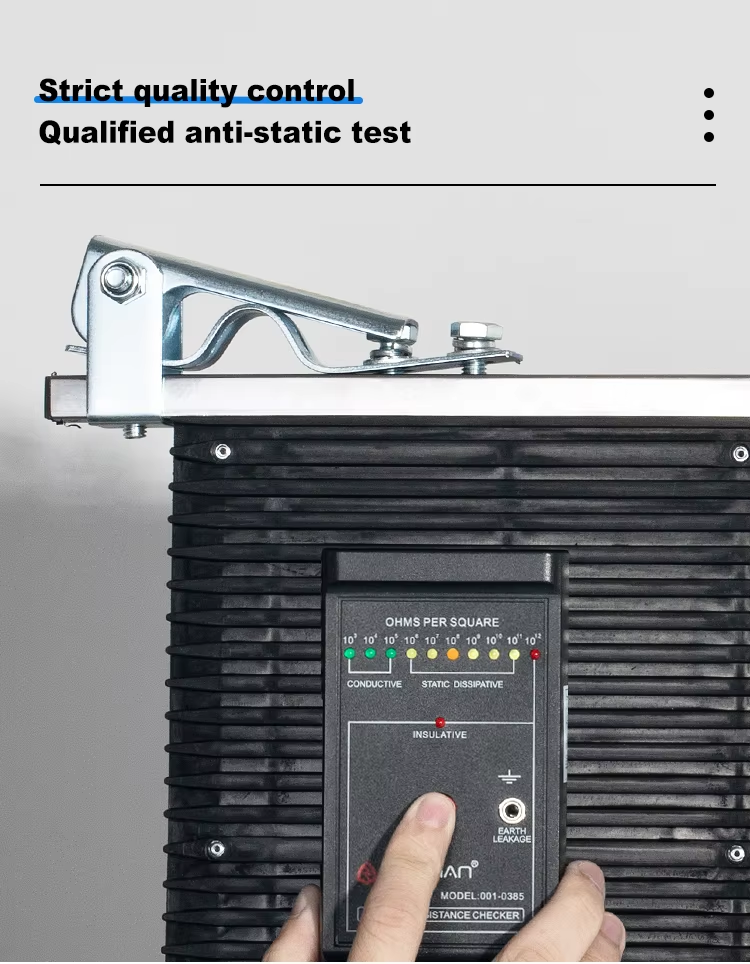

Surface Resistance: Maintains a surface resistance of 10^6–10^9Ω, effectively controlling static electricity.
Key Features and Benefits
Superior ESD Protection:
The integration of Stainless Steel and PP Plastic ensures full ESD-safe properties, preventing damage to sensitive electronic components such as PCBs,
ICs, and semiconductors.
High Storage Capacity and Organization:
With three columns and each column storing up to 100 trays, the trolley cart optimizes workflow efficiency.
The plug-in design allows users to customize the layout based on specific production needs.
Durability and Stability:
The 10mm panel thickness and stainless-steel framework provide exceptional strength,
while the 4-inch ESD rubber wheels offer stability and easy maneuverability across factory floors.
Grounding and Conductive Safety:
The included conductive chain ensures continuous grounding, dissipating static electricity safely
to the ground and maintaining a consistent ESD-safe environment.
Space-Efficient Design:
Its dimensions are tailored to fit seamlessly into SMT production lines,
reducing clutter and improving workspace organization.
Compatibility:
The slot dimensions (5mm depth, 4.5mm width) are designed to accommodate most standard SMT trays,
making it a versatile solution for various manufacturing setups.
Why Choose the SK530-3Columns ESD SMT Trolley Cart?
Electrostatic discharge is a hidden threat in electronics manufacturing.
Even a small static shock can destroy valuable components, leading to increased scrap rates, rework costs, and delayed deliveries.
The SK530-3Columns ESD SMT Trolley Cart addresses these challenges by providing:
Enhanced Component Protection: By maintaining a controlled ESD-safe environment, it safeguards components throughout the production process.
Improved Productivity: Its high storage capacity and mobility allow operators to transport large batches of components efficiently, reducing downtime.
Regulatory Compliance: Helps manufacturers meet international ESD protection standards such as ANSI/ESD S20.20 and IEC 61340-5-1.
Cost-Effectiveness: Investing in reliable ESD protection reduces waste and operational costs associated with component failure.
This trolley cart is ideal for use in:
SMT and PCB assembly lines
Cleanrooms and ESD-protected areas
Warehouses and logistics hubs
Laboratories and testing facilities
Customer Reviews
Here’s what our customers have to say:
John T., Production Manager: *“We’ve significantly reduced ESD-related failures since integrating the SK530 trolley carts into our SMT line.
The build quality is outstanding, and the mobility saves us time every day.”*
Sophia L., Quality Assurance Engineer: “The surface resistance consistency and grounding features give us confidence in our ESD controls.
It’s a reliable product that meets all our expectations.”
TechElectronics Inc.: “These carts are versatile and durable. We use them across multiple facilities,
and they have proven essential in maintaining our high standards of efficiency and safety.”
The SK530-3Columns ESD SMT Trolley Cart is more than just a storage unit
—it is a comprehensive ESD protection solution designed to enhance productivity, ensure safety,
and reduce costs in electronics manufacturing. With its robust construction, thoughtful design, and proven performance,
it is the go-choice for industries where precision and reliability matter.
