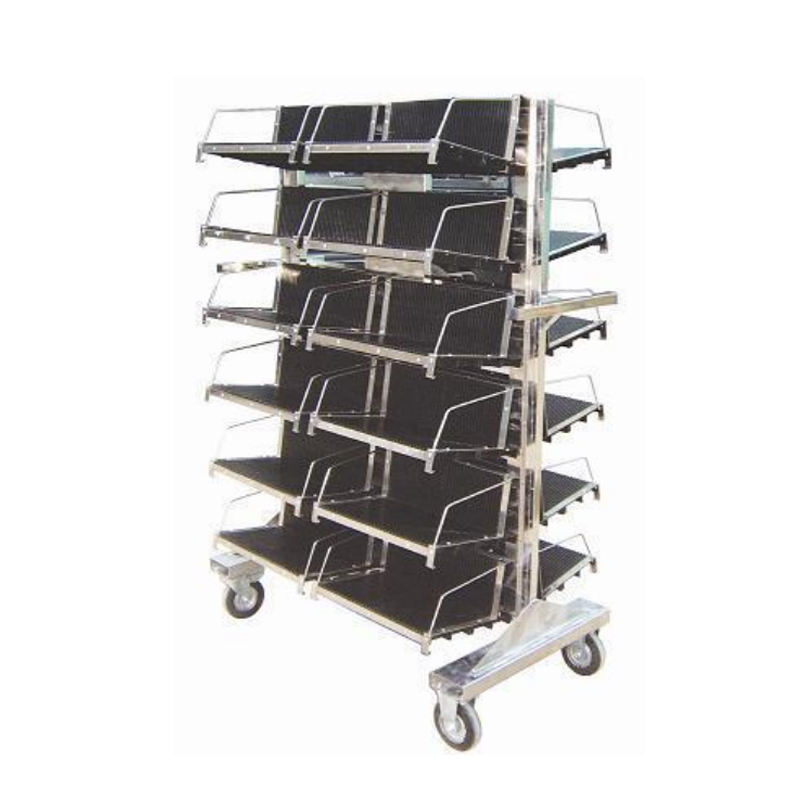

The SK906024 ESD PCB Trolley Storage System is a high-performance, functionally designed storage solution engineered for the safe handling and organization of printed circuit boards (PCBs) in electrostatic discharge (ESD)-sensitive environments. Combining robust construction with intelligent ergonomic design, this trolley is an essential asset for electronics manufacturing, repair facilities, laboratories, and assembly lines where component protection and operational efficiency are critical.
Basic Product Parameters
Model: SK906024
Material: 1.0mm thick 202 Stainless Steel (frame) + PP Plastic (baskets)
Overall Dimensions (L × W × H): 900mm × 600mm × 1630mm
Hanging Basket Quantity: 24 pieces
Hanging Basket Dimensions (L × W × H): 410mm × 280mm × 160mm
Storage Capacity per Basket: 38 PCBs
Total PCB Storage Capacity: 912 PCBs
Slot Type: Vertical insertion
Slot Depth: 5mm
Slot Width: 2.8mm
Slot Distance: 9.8mm
Slot Length: 210mm
Wheels: 4 × 4-inch ESD Rubber Wheels
Additional Feature: Conductive chain for grounding
Surface Resistance: 10⁶–10⁹ Ω
Load Capacity per Basket: ≈15 kg
Overall Load Capacity: 200–300 kg
Product Features
Superior ESD Protection
Constructed with anti-static materials, the trolley ensures a surface resistance of 10⁶–10⁹ Ω,
effectively dissipating electrostatic charges and preventing damage to sensitive electronic components.
Robust Construction
The frame is made from 1.0mm thick 202 stainless steel, offering durability and structural integrity.
The hanging baskets are manufactured from high-quality polypropylene (PP) plastic, known for its strength, chemical resistance, and ESD-safe properties.
High Storage Capacity
With 24 removable hanging baskets, each capable of storing up to 38 PCBs,
the system offers a total storage capacity of 912 boards, making it ideal for high-volume environments.
Ergonomic and Mobile Design
Equipped with four 4-inch ESD-safe rubber wheels, the trolley offers smooth mobility and stability.
The conductive chain ensures continuous grounding during movement, enhancing safety during transit.
Optimized Slot Design
The vertical insertion slots feature a depth of 5mm, width of 2.8mm, and spacing of 9.8mm,
ensuring secure holding of PCBs of various thicknesses and sizes without causing physical stress or deformation.
Customizable Organization
The removable baskets allow flexible configuration based on PCB size and workflow requirements, improving both accessibility and space utilization.
Product Functions
ESD-Safe Storage: Provides a controlled environment that prevents electrostatic discharge, ensuring the integrity of stored PCBs.
Efficient Space Utilization: Vertical design maximizes storage density without compromising accessibility.
Easy Mobility: Facilitates seamless movement of PCBs between production, testing, and storage areas.
Secure PCB Handling: Slots are designed to hold boards firmly in place, reducing the risk of physical damage such as bending or scratching.
Modular Flexibility: Baskets can be rearranged or removed to accommodate larger assemblies or varied PCB dimensions.
Grounding Compliance: Integrated conductive chain ensures continuous grounding in accordance with ESD protection standards.
Product Applications
The SK906024 ESD Trolley is ideally suited for a wide range of applications, including:
Electronics manufacturing and assembly lines
PCB testing and quality control stations
Repair and rework facilities
Laboratory and R&D environments
Warehousing and logistics operations involving ESD-sensitive components
Its design is particularly beneficial in settings requiring frequent transport of
PCBs between different stages of production while maintaining strict ESD protocols.
Key Highlighted Characteristics
Exceptional ESD Protection: Engineered to meet international ESD standards, providing a reliable safeguard for sensitive electronics.
Heavy-Duty Performance: With a per-basket load capacity of 15kg and an overall load of 200–300kg, this trolley supports substantial weight without compromising functionality.
User-Centered Design:
Combines mobility, modularity, and ease of use, reducing operator fatigue and enhancing workflow efficiency.
Durability and Longevity:
The use of corrosion-resistant stainless steel and industrial-grade PP plastic ensures a long service life even in demanding environments.
Scalable Storage Solution:
Suitable for both small-scale and high-throughput operations due to its large capacity and adaptable configuration.
The SK906024 ESD PCB Trolley Storage System represents a blend of innovative engineering and practical functionality. It offers a reliable, efficient, and safe solution for handling and storing PCBs, addressing the critical needs of modern electronic manufacturing and maintenance facilities. With its emphasis on ESD protection, structural strength, and operational versatility, this trolley is an indispensable tool for enhancing productivity and maintaining the highest standards of component care.
