Static Shielding Bags (Open Top) offer a fully protected electrostatic-safe environment for the secure storage and transportation of static-sensitive electronic components, while allowing for easy visual identification. Each bag is constructed with a 75-micron thickness and is printed with the standard ESD industry symbol. These bags provide reliable "Faraday Cage" protection and are supplied in convenient packs of 100 pieces.

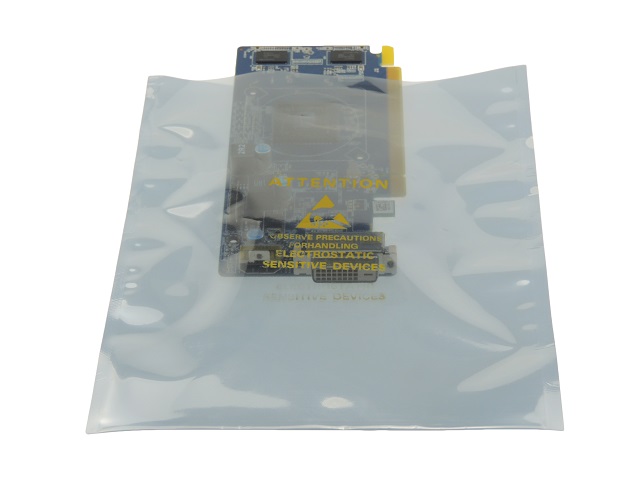

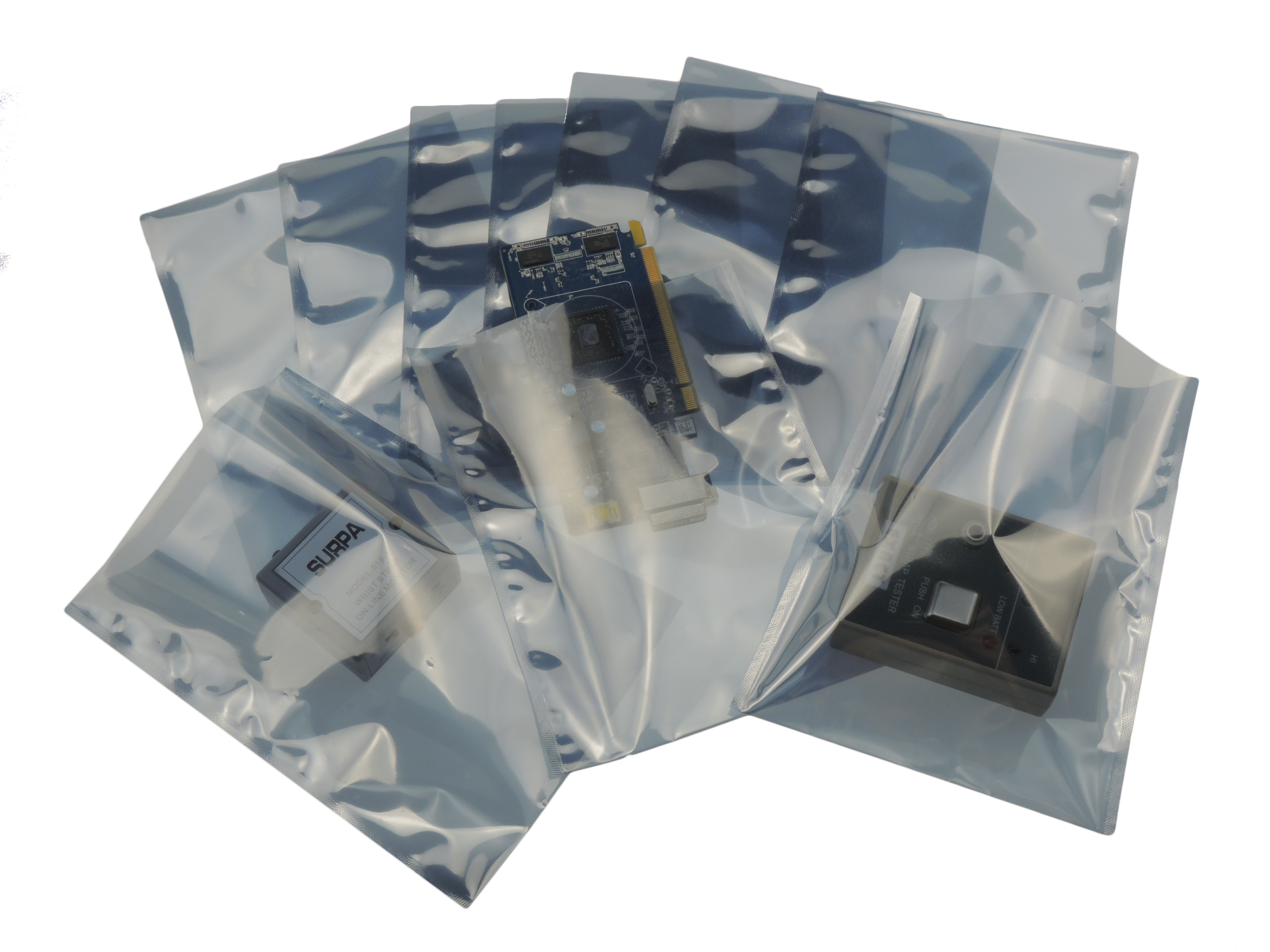

Static Shielding Bags (Open Top) are widely used throughout the electronics manufacturing industry to safeguard static-sensitive components
during storage and transit. These bags are ideal for packaging a variety of devices, including printed circuit boards,
integrated circuits, motherboards, hard drives, CD drives, and other computer components.
Featuring a metallized construction, the bags form a conductive barrier that ensures complete protection against ESD charges.
Any electrostatic discharge is confined to the outer surface of the metal film, preventing it from reaching the contents inside.
The bags incorporate a 4-layer structure with a static-dissipative coating, delivering full “Faraday Cage” protection against ESD impacts.
They are manufactured using industry-approved laminates of static-dissipative polyester and polyethylene for consistent performance and reliability.
Key Features of Static Shielding Bags:
*packaging and rapid retrieval in ESD-protected areas.
*Robust 4-Layer Construction: Ensures complete Faraday Cage protection through a laminated structure of
static-dissipative coating, polyester, aluminum shielding, and static-dissipative polyethylene.
*Instant Content Identification: Semi-transparent material allows for quick visual verification of
enclosed components without compromising protection.
*Standard Compliance & Identification: Printed with the standard ESD symbol and fully compliant
with ESD, RoHS, and REACH regulations.
*Ready-to-Ship & Customizable: A wide range of standard sizes is available from stock,
with bespoke sizes, thicknesses, and printing available on request.
*Standard Specifications: 75 microns thick, supplied in convenient packs of 100.
Metal-in Open-top Static Shielding Bag size table:
SK06010203 | 2" x 3" /50mmx75mm |
SK06010206 | 2" x 6" 50mmx150mm |
SK06010303 | 3" x 3" /75mmx75mm |
SK06010305 | 3" x 5" / 75mm x 125mm |
SK06010406 | 4" x 6" / 100mm x 155mm |
SK06010424 | 4" x 24" /100mmx600mm |
SK06010406 | 4" x 26" /100mmx950mm |
SK06010430 | 4" x 30" /100mmx750mm |
SK06010508 | 5" x 8"/ 125mm x 205mm |
SK06010510 | 5" x 10" / 125mmx250mm |
SK06010608 | 6" x 8" /150mmx200mm |
SK06010610 | 6" x 10"/ 150mm x 255mm |
SK06010612 | 6" x 12"/ 150mm x 305mm |
SK06010616 | 6" x 16" /150mmx400mm |
SK06010626 | 6" x 26" /150mmx650mm |
SK06010630 | 6" x 30" /150mmx750mm |
SK06010810 | 8" x 10" /200x250mm |
SK06010812 | 8" x 12" / 205mm x 305mm |
SK06010818 | 8" x 18" / 205mm x 460mm |
SK06010816 | 8" x 16" / 200mmx400mm |
SK06010824 | 8" x 24" / 205mm x 610mm |
SK06011012 | 10" x 12" /250mmx300mm |
SK06011014 | 10" x 14" /250mmx350mm |
SK06011016 | 10" x 16" / 255mm x406mm |
SK06011018 | 10" x 18" / 255mm x 460mm |
SK06011024 | 10" x 24" / 255mm x 610mm |
SK06011026 | 10" x 26" / 255mm x660mm |
SK06011030 | 10" x 30 / 255mm x 760mm |
SK06011115 | 11" x 15" /350mmx425mm |
SK06011214 | 12" x 14" / 305mm x 355mm |
SK06011216 | 12" x 16" / 305mm x 406mm |
SK06011218 | 12" x 18" /300mmx450mm |
SK06011224 | 12" x 24" / 305mm x 610mm |
SK06011230 | 12" x 30 /305mm x 760mm |
SK06011418 | 14" x 18"/ 355mm x 460mm |
SK06011420 | 14" x 20 " / 355mm x 510mm |
SK06011430 | 14" x 30"/55mm x 760mm |
SK06011518 | 15" x 18"/ 380mm x 460mm |
SK06011618 | 16" x 18"/ 406mm x 460mm |
SK06011620 | 16" x 20" /406mm x 510mm |
SK06011624 | 16" x 24"/406mm x 610mm |
SK06011818 | 18" x 18" / 450mmx450mm |
SK06011820 | 18" x 20"/460mm x 510mm |
SK06011824 | 18" x 24"/ 460mm x 610mm |
SK06011830 | 18" x 30"/460mm x 760mm |
SK06012020 | 20" x 20"/ 510mm x 510mm |
SK06012024 | 20" x 24 " / S510mm x 610mm |
SK06012224 | 22" x 24"/ 560mm x 610mm |
SK06012424 | 24" x 24"/ 610mm x 610mm |
SK06012426 | 24" x 26" / 600mm650mm |
SK06012430 | 24" x 30" / 610mm x 760mm |
SK06013030 | 30" x 30" / 760mm x 760mm |
