In the fast-paced world of electronics manufacturing and assembly, the safe handling, storage, and transportation of printed circuit boards (PCBs) are critical. Enter the Conductive PCB Tray—a specialized solution designed to protect sensitive components from static discharge, physical damage, and environmental contaminants. This comprehensive guide delves into the features, benefits, and applications of our premium L-Shape Conductive PCB Tray with Metal Handles, tailored for storing and organizing up to 35 PCBs. With dimensions of 410x280x165 mm and a sleek black finish, this tray combines functionality, durability, and ESD safety. Whether you're a manufacturer, engineer, or tech enthusiast, understanding the importance of this tool can enhance your workflow and protect your investments.
Key Specifications

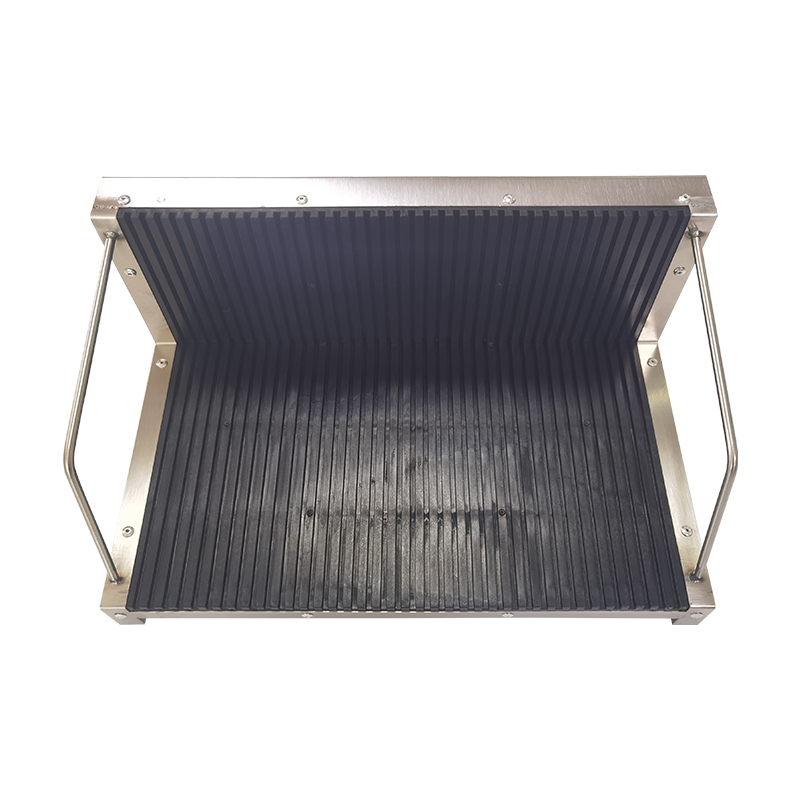

Model: L-Shape Conductive PCB Tray with Metal Handles
Capacity: Holds up to 35 PCBs
Dimensions: 410mm (L) x 280mm (W) x 165mm (H)
Material: Conductive polymer (carbon-loaded) for ESD protection
Color: Black
Handles: Reinforced metal handles for easy portability
Design: L-shape structure for stackability and space efficiency
Compliance: Meets ANSI/ESD S20.20 and IEC 61340-5-1 standards for electrostatic discharge protection
Product Features
Superior ESD Protection
Made from conductive materials, this tray dissipates static electricity, preventing damage to sensitive PCBs during handling or storage.
This is crucial in environments where electrostatic discharge can ruin components.
Durable Metal Handles
The integrated metal handles provide a comfortable grip and ensure easy carrying, even when fully loaded.
The handles are rust-resistant and designed for long-term use.
L-Shape Design for Efficiency
The innovative L-shape allows trays to be stacked vertically or nested horizontally, saving valuable workspace.
This design also facilitates easy access to PCBs without full unpacking.
High Capacity and Organization
With a capacity of 35 PCBs, this tray is ideal for medium to large-scale operations.
The interior compartments are customizable with dividers (optional) to accommodate boards of varying sizes.
Robust Construction
The black conductive polymer is not only static-dissipative but also resistant to chemicals, wear, and impact.
This ensures longevity even in harsh industrial environments.
Visual and Functional Appeal
The sleek black color provides a professional look while reducing visible stains or wear.
The tray’s design complements modern manufacturing and lab settings.
Applications and Uses
Electronics Manufacturing: Safely transport PCBs between assembly lines, testing stations, and storage areas.
Quality Control and Testing: Keep boards organized and protected during inspection and debugging processes.
Storage Solutions: Stack multiple trays in cabinets or shelving units for efficient space management.
ESD-Safe Zones: Essential in cleanrooms and ESD-protected areas where static control is mandatory.
R&D and Prototyping: Ideal for laboratories and workshops where multiple PCB versions need secure handling.
Why This PCB Tray is Essential
Prevents Costly Damage
Electrostatic discharge can instantly destroy sensitive electronic components.
Using a conductive tray mitigates this risk, saving companies from expensive repairs or replacements.
Enhances Workflow Efficiency
The L-shape design and stackability streamline operations, reducing clutter and minimizing handling time.
Workers can easily access, transport, and store PCBs without compromising safety.
Promotes Organization
Lost or misplaced PCBs can delay projects and increase costs. This tray keeps boards orderly and accounted for,
improving inventory management and traceability.
Complies with Industry Standards
Meeting ESD safety standards is not just best practice—it’s often a requirement in electronics manufacturing.
This tray helps facilities maintain compliance and avoid penalties.
Versatile and Scalable
Whether you’re handling prototypes or full production runs, the tray’s capacity and design adapt to various needs.
It’s a scalable solution for growing businesses.
The Conductive PCB Tray with L-shape design and metal handles is more than just a storage unit
—it’s a vital tool for anyone working with sensitive electronics. Its combination of capacity, durability,
and ESD protection makes it an indispensable asset in manufacturing, testing, and R&D environments.
By investing in this tray, you’re not only safeguarding your components but also boosting efficiency and maintaining industry compliance.
Choose reliability; choose safety; choose innovation.
