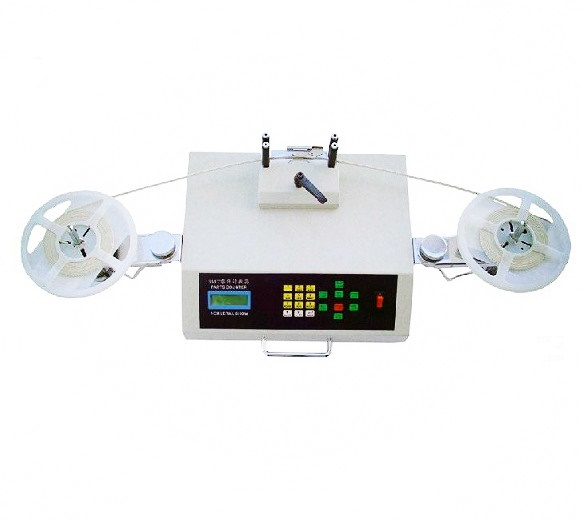

YS-801 Autuomation SMD Parts Counter Machine


Variants



Technical Characteristics

1Automation SMD parts counter machine, easy operation , small in size and convenient to use.

2You can set a quantity you needwhen the counting finished the machine will be stoped, it is very convenience for you to count,issue and receive the SMD spare parts.

3This machine could be count both by forward and reverse,which is very accurate and has zero error,especially designed for SMD spares.

4It can be equip the scanning and bar code printer.

5It is small and lightweight,convenient to carry.Designed especally for SMD factory which use to count the SMD parts.

Technical Parameter:

1.Power sourceAC110/220V

2.Count speed5000PCS /15minutes4mm pitch

3.Rated power:   30W

4.Count range:   From -99999 to 99999pcs

5.Machine measurement: L470*W300*H180 mm

6.Weight:         10kg

7.Applicative tape diameterevery type of SMD tape is ok

8.Pitch: 2,4,8,12,16,20,24,28,32,36,40,44,48,52,56mm mm

9.Applicative tape width: 8,12,16,24,32,44,56mm

10Packaging detail:Carton and within foam plastics.
