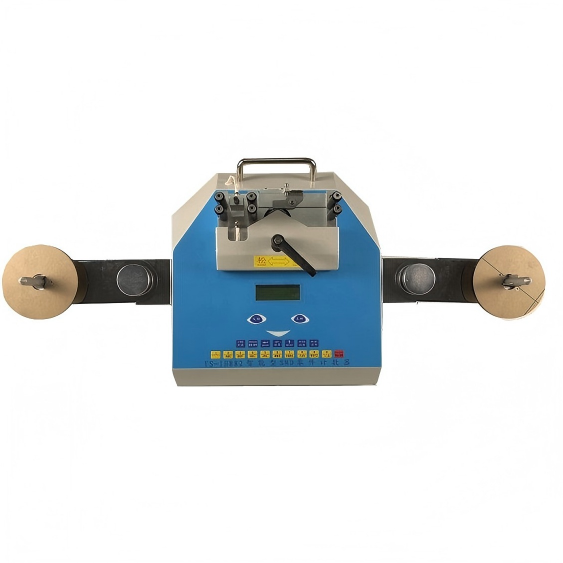

YS-IH881 Intelligent high-speed voice SMD Parts counter


Variants



A new generation of intelligent high-speed SMD spare parts automatic counter.



YS-IH881 main features

1. It reports the number automatically。(Voice adjustment1-16 level

2. You can set a tape diameter factor,then when the counting will finish the machine can stop by itself,no need to press the “STOP”button.

3. Absolutely zero error,zero overshoot.

4. More powerful and more suitable for the big and heavy tape, no noise when  it stoped.

5. According to tape size, you can choose differnt counting speed, this machine can support 8 different speeds to make your job faster and and more convennient.

6. It include all the traditional featuresbut optimized and upgrade.

YS-IH881  specfications :
1.Power source:  AC110V/220V 50HZ
2.Speed: 5000PCS /15minute4MM pitch
3.Motor power:  80W
4.Counter range: -99999~99999pcs
5.Outer size:  L490MM*W280MM*H280MM
6.Weight: 12kg

7. Applicative tape diameterany type of SMD tape is ok

8. Applicative taper pitch: 2.4.8.10.12.16.32.44.56mm

9. Applicative taper width: 8,12,16,24,32,44,56mm

10Packaging detailCarton and within foam plastics.L500MM*W360MM*H340MM
